Overview
The C414 XL II is the successor of the famous C414 B-TL II. It shows the unique sonic signature of the highly sought after AKG C 12 which enables lead vocals and solo instruments to be placed even in a dense mix. The unrivalled up-front sound is also well-known for distant miking applications like classic music recording or drum ambience miking.
The XL II version differs from the XLS version in one major respect - the capsule. Both the slight presence boost and the impressive spatial reproduction is similar to the legendary C 12 microphones.
For over 60 years leading musicians and engineers have used legendary AKG microphones to capture their sound so their audience hears every nuance. The C 414 family has been one of the world’s most widely-used and respected studio and stage microphones in audio history. AKG has continually set new benchmarks for useful features improved technical specifications and ease of use to answer requests from ever-demanding recording studios broadcast stations and audio engineers.
The new models C 414 XLS and C 414 XLII offer nine pickup patterns which enable to choose the perfect setting for every application. For live-sound applications and permanent installations all controls can be disabled easily for trouble-free use. A Peak Hold LED displays even shortest overload peaks.
The C 414 comes complete with carrying case pop filter windscreen and spider-type shock mount.
Also available in stereo pair C 414 XL II/ST

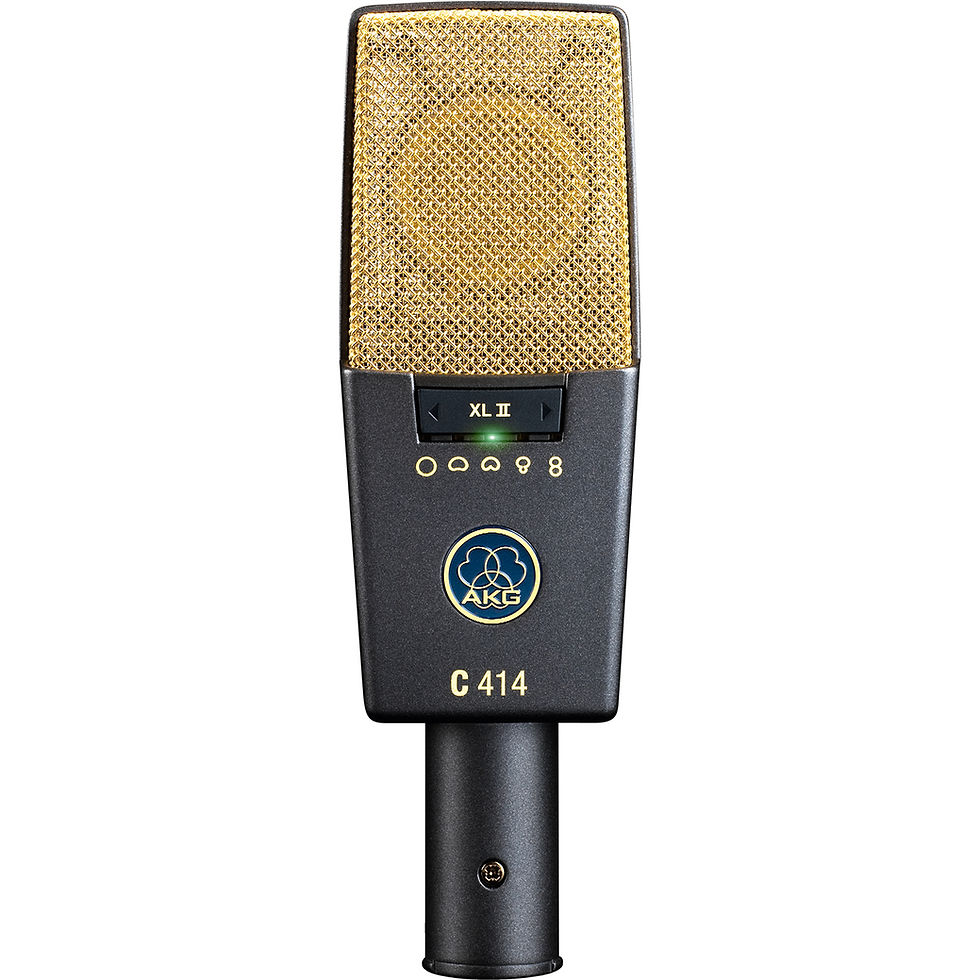

AKG C414 XLII Large diaphragm studio microphone for solo vocals and instruments
General
- Polar Patterns: Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
- Audio frequency bandwidth: 20 - 20000 Hz
- Equivalent noise level: 6 dB-A
- Sensitivity: 23 mV/Pa
- Signal to Noise: 88 dB-A
- Preattenuation Pad: -6; -12; -18 dB
- Bass cut filter: 160; 80; 40 Hz
- Electrical impedance: 200 Ohms
- Recommended load impedance: 2200 Ohms
Design
- Finish: dark gray/silver
Audio Output
- Type Balanced: XLR
- Gender: Male
- Contacts: 3-pin
Powering Interface
- Voltage: 44 to 52 V
- Current: 4.5 mA
Application
- Pro Studio: Yes
Instrument
- Vocals: Yes
- Piano / Strings: Yes
- Horns / Woodwinds: Yes
Dimensions
- Length: 38 mm
- Width: 50 mm
- Height: 160 mm
- Net Weight: 300 g
