This Universal Fluid Distribution System from Antari is designed to supply Antari fluids from a connected tank to up to three simultaneously connected fog, faze, or snow machines from up to 39' away vertically or 115' away horizontally.
The system is comprised of two units—the liquid supply unit and the liquid tank unit—connected to each other via a 3-pin XLR data cable. The liquid supply unit transfers fluid from an attached tank to the liquid tank unit. The liquid tank unit then distributes the fluid to up to three connected fog, faze, or snow machines. For aerial installations such as from a truss or ceiling, the liquid tank unit features an adjustable hanging bracket and an eyelet for connecting the safety cable.
Key Features:
- Compatible with Antari Fluids
- Data Connection: 3-Pin XLR
- Simultaneously Supply up to 3 Machines
- Max Vertical Distance: 39'
- Max Horizontal Distance: 115'
- Power Connection: IEC

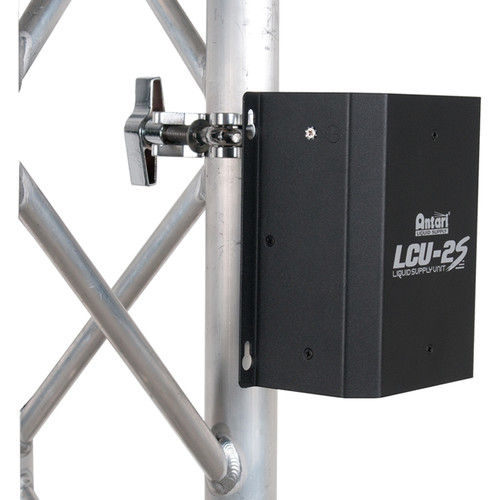

Antari LCU-2S Liquid Supply System
$749.00 Precio
$589.00Precio de oferta
Rated Power 48 W Input Voltage US Model: AC 100-120 V, 50/60 Hz 0.35 A
EU Model: AC 220-240 V, 50/60 Hz 0.18 APower Connection Type IEC Data Connector 3-Pin XLR Maximum Distance Horizontal: 115' / 35 m
Vertical: 39' / 11.8 mAmbient Temperature Range 41 to 104°F / 5 to 40°C Dimensions (L x W x H) Supply Unit: 7 x 6.5 x 3.3" / 17.9 x 16.7 x 8.4 cm
Tank Unit: 6.2 x 4 x 9.7" / 15.8 x 10.3 x 24.8 cmWeight Supply Unit: 4.3 lb. / 1.95 kg
Tank Unit: 3.97 lb. / 1.8 kg
