Overview
The JMAZ Professional Electro 4PK T5 Kit is a premium outdoor lighting solution, combining high-output RGBW+WW performance with portability and precision. Each T5 tube delivers 100W of power via 192 dual-chip (0.5W) LEDs, offering exceptional color fidelity with CRI, CQS, and TLCI ratings of ≥95 and a flicker-free 20KHz refresh rate—ideal for film, broadcast, and live events. With 32 individual pixel zones, a wide 180° beam angle, and CTO adjustability from 2500K to 10000K, this kit provides stunning output and creative flexibility. Packed in a durable injection-molded case, it includes 4 tubes and fits up to 6 for future expansion. Battery runtime reaches 15 hours (30 in saver mode) with a quick 5-hour charge. The kit features 49 preset color programs, 68 built-in effects, and 4 advanced sound-active modes with 49 color options. Operate using 9 DMX personality modes (including CCT, HSI, 16-bit, and pixel control up to 160 channels) over DMX512, Wireless DMX, WiFi, or IR remote. Accessories include a tripod stand, DMX cables, IR remote, charger, and more. CE, FCC, and RoHS certified.
Features

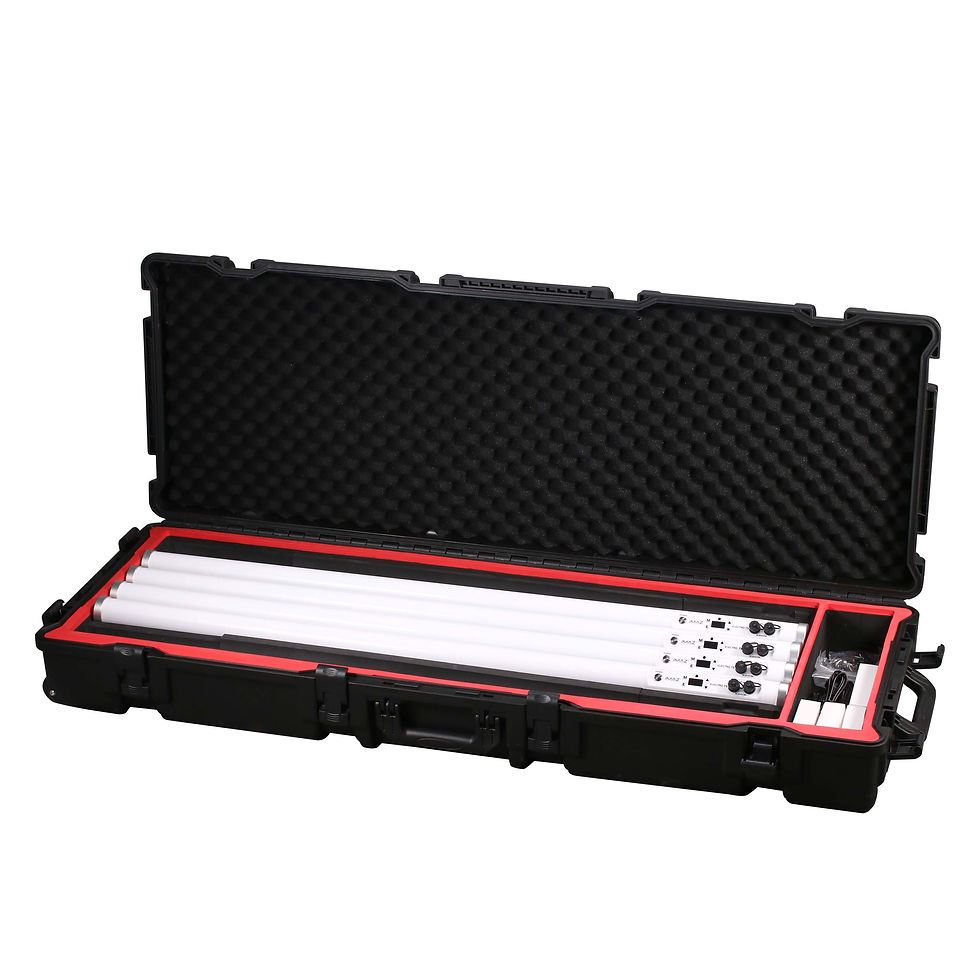

- Complete four-fixture package includes four Electro T5 RGBW+WW LED tubes housed in a rugged injection-molded case for efficient transport, storage, and deployment.
- Each 100W tube delivers exceptional color accuracy with CRI, CQS, and TLCI ratings of ≥95, making the kit ideal for film, broadcast, livestreaming, and professional production environments.
- Advanced 32-pixel control and a wide 180° beam angle enable dynamic pixel-mapped effects, animated chases, and immersive color washes across all four fixtures.
- Full-spectrum RGBW+WW color mixing with adjustable CTO from 2500K–10000K provides precise white light reproduction and seamless color temperature matching for any application.
- Integrated lithium-ion batteries provide up to 15 hours of runtime per charge, or up to 30 hours in battery saver mode, delivering reliable cable-free operation indoors or outdoors.
- Expandable road case accommodates up to six Electro T5 fixtures and includes tripod stands, truss-mount accessories, chargers, DMX cables, and IR remotes for a complete production-ready solution.

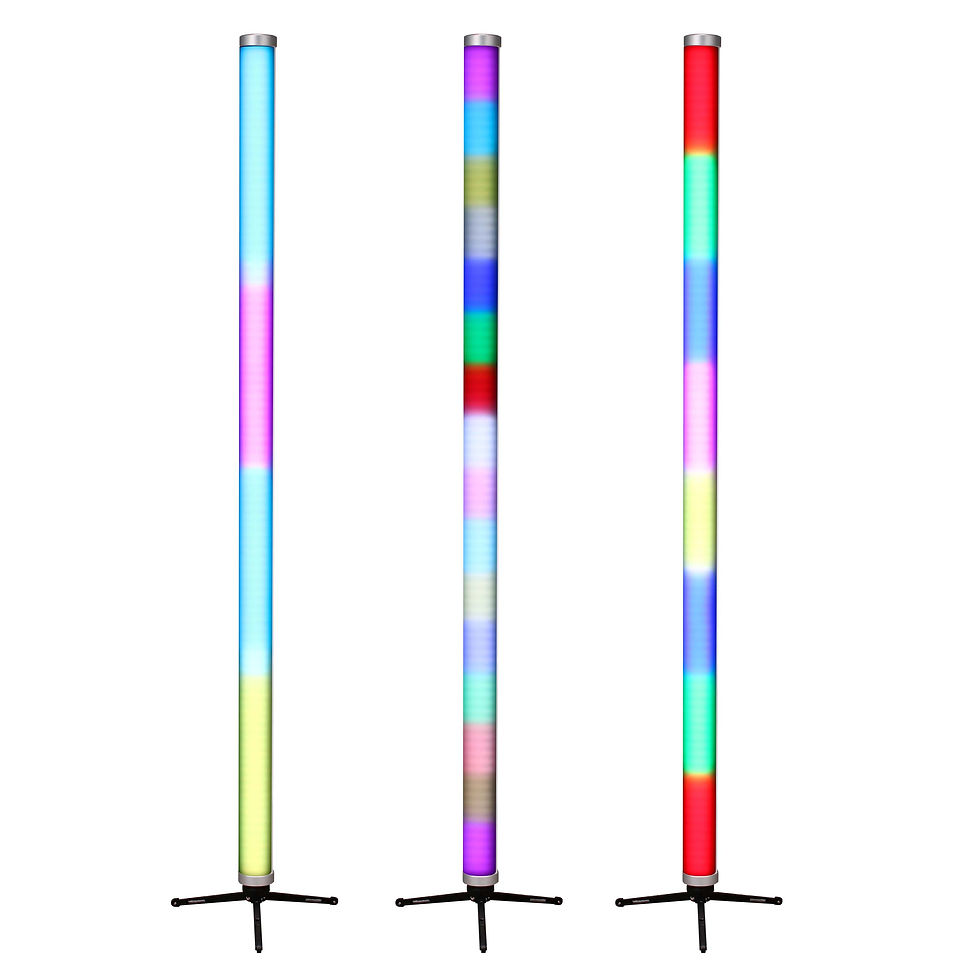

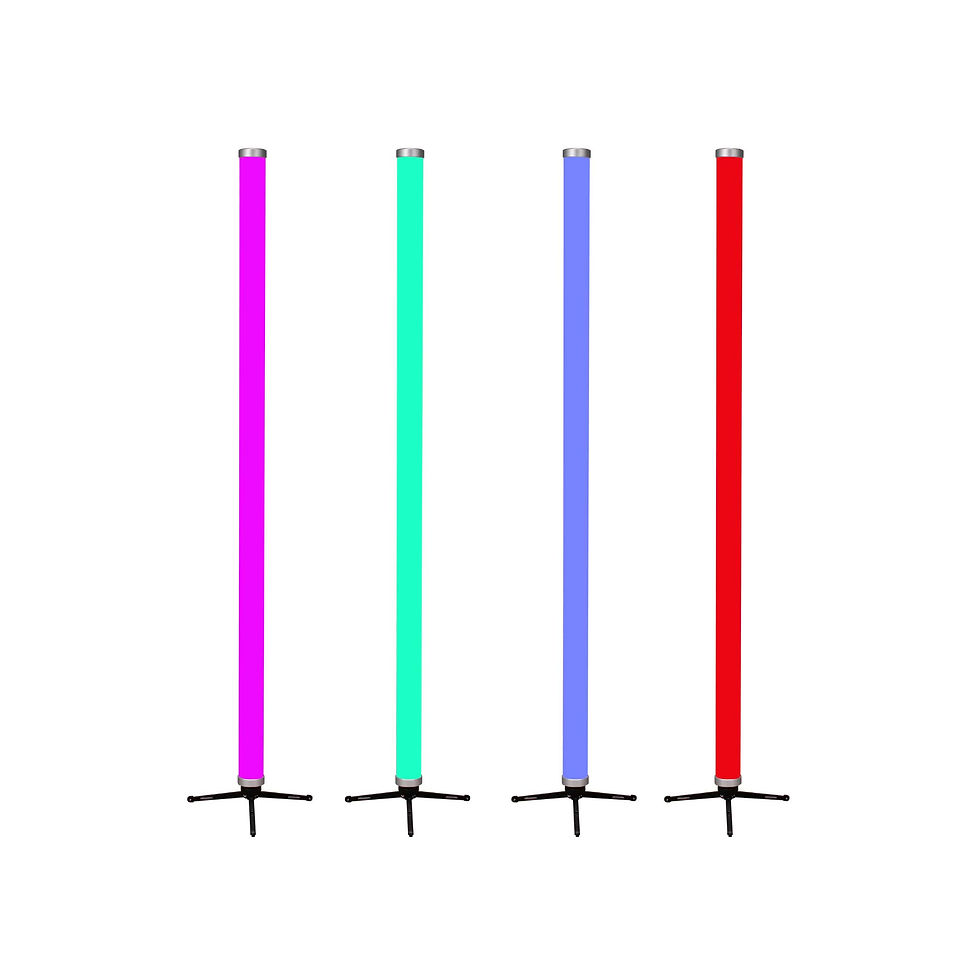

JMAZ JP2004 Electro T5 4Pack RGBW+WW High CRI Outdoor LED Pixel Tube Kit
Light Source
- 192 x 0.5W RGBW+WW LEDs
- LED Life Expectancy: 50,000 Hours
Color System
- RGBW+WW Color Mixing 8/16 Bit
- CTO: 2500K to 10000K
Optics
- Beam Angle: 180°
Dynamic Effect
- Individual Dynamic Chase, Fade, Static and Sound Active Modes
- Max 15 Hour Batery Life / 30 Hour In Battery Saving Mode
- Charging Time: 5 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 49 Preset Color Programs
- 4 Advanced Sound Active Mode with 49 Color Options
- 68 Auto / Fade Built-In Programs
Control
- Protocol: DMX512, Wireless DMX, Wi-Fi, IR Remote
- Personalities (9 Modes): CT-4CH; HSI-4CH; CCT/HSI-6CH;
16-Bit-13CH; RCGCW+S-7CH; Macro12CH; Pix8-40CH;
Pix16-80CH; Pix32-160CH - OLED Graphical Display
Electronics
- Linear Dimmer: 0 – 100%
- CRI: ≥ 95
- CQS: ≥ 95
- TLCI: ≥ 95
- Refresh Rate: 20KHz
- Control Pixel: 32 Pixels
- Strobe Shutter: 0-25Hz
- Dimming Modes: 4 (Linear, Exponential, Logarithmic, S-Curve)
Body
- Polycarbonate + Aluminium
Physical
- IP Rating: 65
- Cooling: Fanless
Electrical
- Input Voltage: 100 – 240V AC, 50/60Hz
- Power Consumption: 50W
- PWM: 1.5KHz
- Battery Voltage: 12.6V / 18Ah
- Battery Capacity: 21,700mAH, 273.4 Wh/hour
- Charger: 12.6V, 2A
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
- Certification /Qualifications
CE, FCC, RoHS - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)
Box Content

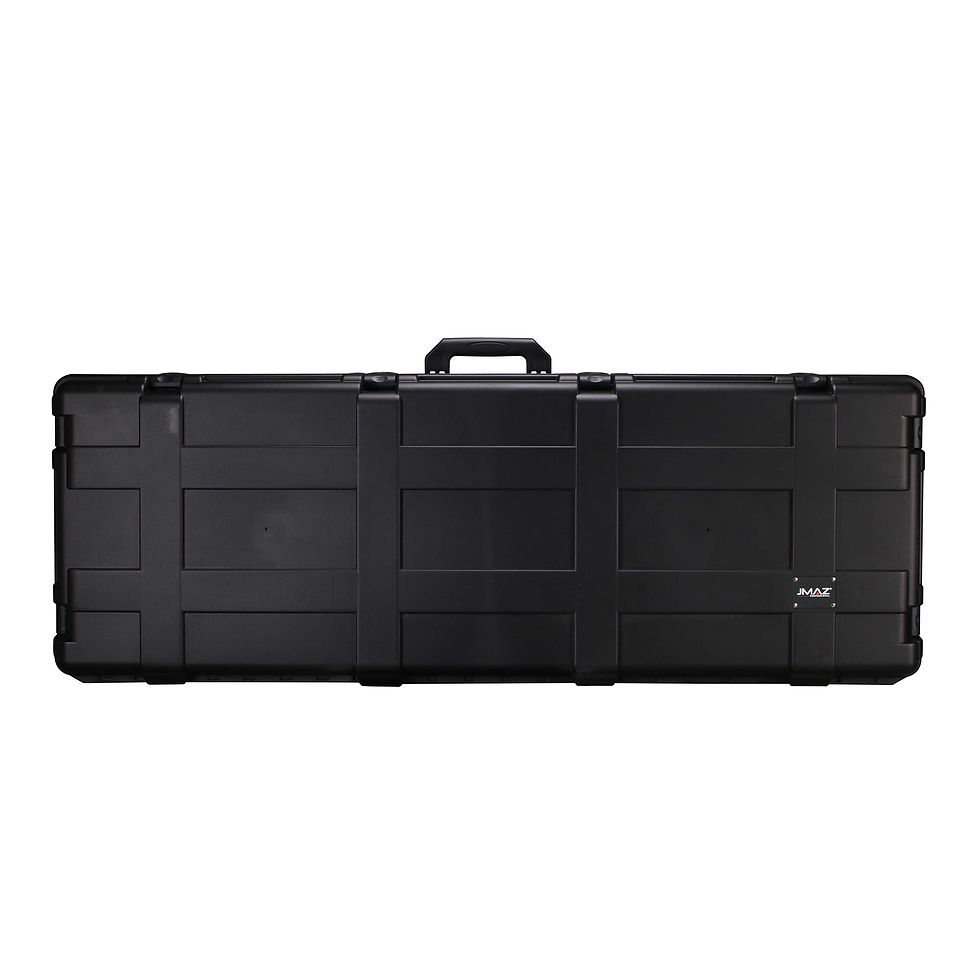

- 1 x Injection Molded Case
- 4 x Tripod Stand
- 4 x Eyebolts
- 8 x Metal Tube Holders
- 4 x Wing Plate for Truss Mounts
- 8 x 5-Pin DMX Cables (Male and Female)
- 5 x 5-Pin Chargers
- 4 x IR Remotes
- 1 x QSG
- 1 x Manual
