Overview
The Electro Panel W8 4-Pack with Charging Road Case provides a compact and versatile wireless lighting package engineered for mobile productions, corporate events, houses of worship, and rental inventories. This all-in-one system includes four Electro Panel W8 fixtures paired with a durable charging road case, offering convenient transportation, secure storage, and simultaneous charging in a single professional solution.
Designed to maximize efficiency both on the road and at the venue, the charging road case keeps all fixtures organized, protected, and ready for immediate deployment. Whether illuminating stages, walls, d�cor, or event spaces, the Electro Panel W8 4-Pack delivers reliable wireless performance while reducing setup time and simplifying event preparation.
Features
- All-in-one package combines four Electro Panel W8 fixtures with a dedicated charging road case for convenient transport, storage, and charging.
- Simultaneous in-case charging keeps fixtures organized, protected, and ready for immediate deployment at every event.
- Compact package design maximizes portability while reducing setup time and simplifying event logistics.
- Durable road case construction safeguards fixtures from the rigors of transportation, production environments, and rental applications.
- Versatile lighting solution suitable for uplighting, wall washing, stage accents, d�cor lighting, and temporary event installations.
- Designed for mobile entertainers, production companies, rental providers, houses of worship, and corporate event professionals requiring dependable wireless lighting solutions.
JMAZ JP2013 Electro Panel W8 4Pack with Charging Road Case
Light Source
- 96W (8 x 12W) RGBL LEDs
- LED Life Expectancy: 50,000 hrs
Color System
- RGBL Color Mixing 8/16 bit
- CTO: 2300K � 8500K
Optics
- Advanced Optics Beam Angle: 20 Degree
- Diffuser Angle (included): 40 Degree
Dynamic Effect
- Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4.5 Hours
- Selectable Battery Saving Mode: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
- 73 Preset Color Programs
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature: 2300K � 8500K
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Wireless DMX: CRMX by LumenRadio
- Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
- External Finish: Black
Physical
- IP Rating: 65
- Cooling: Fanless
- Certifications / Qualifications:
- RoHS, CE, FCC, cETL (Pending)
- Operating Temperature: -10� C to (14�F) to 60� C (140� F)
- Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
- Power Input: Seetronic Powercon IP65 True1
- Power Output: Seetronic Powercon IP65 True1
- Data Connectors: Seetronic 5pin XLR IN/OUT
- Cable Length: Power 4.1 feet (1.25 meter)
Electrical
- Input Voltage: 100V �240V AC, 50/60 Hz
- Power Consumption: 120W
- PWM: 1.5KHz
- Battery Voltage: 18.5V
- Battery Capacity: 15600mAh, 288.6Wh
- Charger: 21V, 3.5A
- Rechargeable Battery Type: Lithium Ion***UL Listed***
- Power Linking for connecting fixtures in daisy-chain:
- Up to 18 units @110V with a 20A circuit
- Up to 30 units @208V with a 20A circuit
- Up to 40 units @230V with a 20A circuit
Box Content

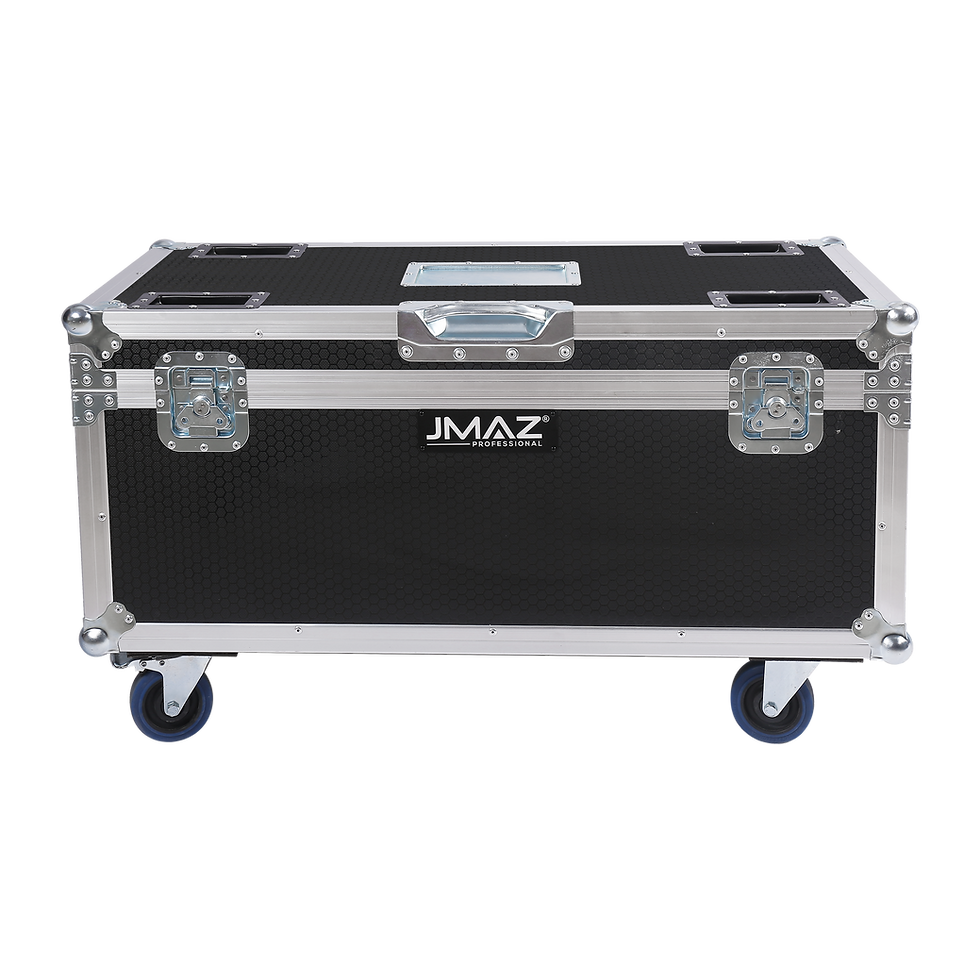

- 1 x Charging Road Case
- 4 x Electro Panel W8
- 4 x Powercon IP65 TRUE1 Power Cable
- 1x Quick Start Guide
- 1 x User Manual
- 4 x IR Remote
- 4 x Barn Door
- 4 x 40 Degree Diffuser
Item Dimensions & Weight
- Dimensions: 38.6? x 20.9? x 22?
- Weight: 145lbs
UPC
618528600017
