Overview
The Electro Panel W18 4-Pack with Charging Road Case delivers a complete wireless lighting solution designed for production companies, rental houses, houses of worship, and event professionals who demand powerful output, rapid deployment, and effortless transport. Featuring four Electro Panel W18 fixtures housed in a rugged charging road case, this turnkey package simplifies setup, charging, storage, and transportation while ensuring every fixture is show-ready when you arrive on site.
The integrated charging road case allows all four fixtures to be charged simultaneously without removing them from the case, reducing preparation time and streamlining event logistics. Combining vibrant wireless performance with professional-grade protection, the Electro Panel W18 4-Pack is the ideal solution for uplighting, stage washes, architectural lighting, and temporary event installations where flexibility and efficiency are essential.
Features
- Complete turnkey package includes four Electro Panel W18 fixtures and a professional charging road case for streamlined deployment and transportation.
- Integrated charging system allows all fixtures to recharge simultaneously while stored securely inside the case, minimizing setup and turnaround time.
- Rugged touring-grade road case construction provides superior protection during transport, storage, and rental operations.
- Organized charging and storage solution helps reduce cable management, simplify inventory control, and improve operational efficiency.
- Ideal for uplighting, stage washes, architectural illumination, corporate events, houses of worship, and temporary production installations.
- Designed for production companies, rental houses, event professionals, integrators, and entertainment venues seeking a reliable wireless lighting package with maximum deployment efficiency.
JMAZ JP2014 Electro Panel W18 4Pack with Charging Road Case
Light Source
- 216W (18 x 12W) RGBL LEDs
- LED Life Expectancy: 50,000 hrs
Color System
- RGBL Color Mixing 8/16 bit
- CTO: 2300K � 8500K
Optics
- Advanced Optics Beam Angle: 20 Degree
- Diffuser Angle (included): 40 Degree
Dynamic Effect
- Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 2.5 Hours
- Selectable Battery Saving Mode: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
- 73 Preset Color Programs
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature: 2300K � 8500K
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Wireless DMX: CRMX by LumenRadio
- Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
- External Finish: Black
Physical
- IP Rating: 65
- Cooling: Fanless
- Certifications / Qualifications:
- RoHS, CE, FCC, cETL (Pending)
- Operating Temperature: -10� C to (14�F) to 60� C (140� F)
- Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
- Power Input: Seetronic Powercon IP65 True1
- Power Output: Seetronic Powercon IP65 True1
- Data Connectors: Seetronic 5pin XLR IN/OUT
- Cable Length: Power 4.1 feet (1.25 meter)
Electrical
- Input Voltage: 100V � 240V AC, 50/60 Hz
- Power Consumption: 216W
- PWM: 1.5KHz
- Battery Voltage: 29.6V, 3A
- Battery Capacity: 13000mAh, 384.8Wh/hour
- Charger: 29.4V, 5.5A
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
- Power Linking for connecting fixtures in daisy-chain:
- Up to 8 units @110V with a 20A circuit
- Up to 14 units @208V with a 20A circuit
- Up to 17 units @230V with a 20A circuit

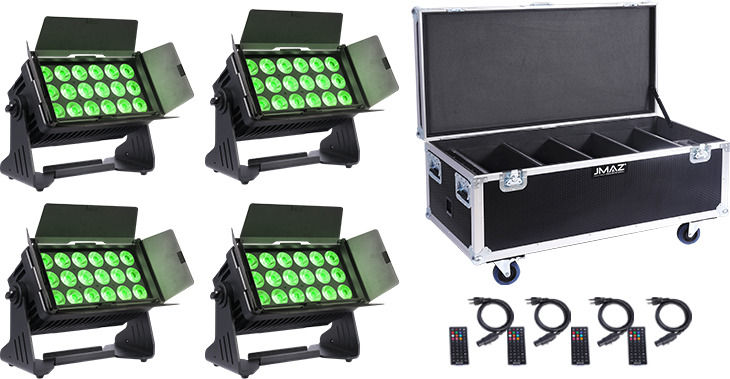

Box Content
- 1 x Charging Case
- 4 x Electro Panel W18
- 4 x Powercon IP65 TRUE1 Power Cable
- 1 x Quick Start Guide
- 1 x User Manual
- 4 x IR Remote
- 4 x Barn Door
- 4 x 40 Degree Diffuser
UPC
618528600024
