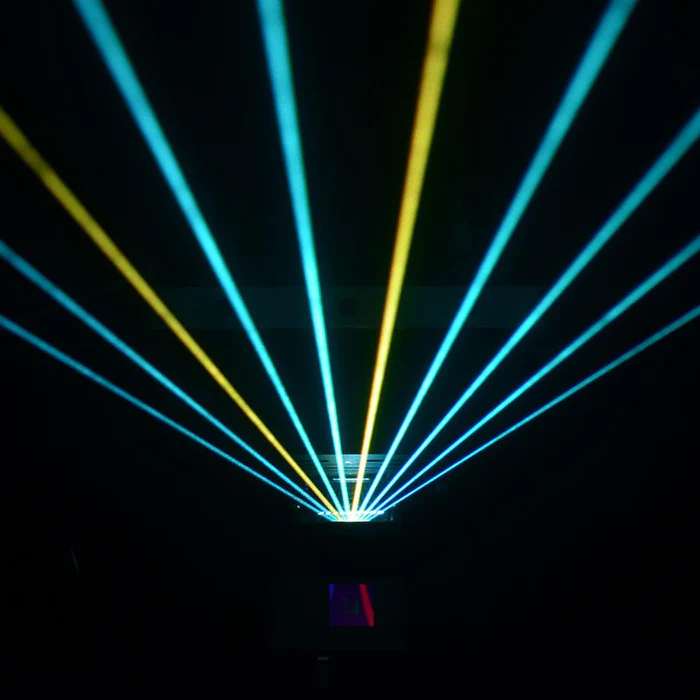

KVANT Laser Harp (Standard)
The KB2D Laser Harp Controller is a detection system working as a MIDI controller. It enables to send customizable MIDI messages just by touching / interacting with laser beams, and can be used with any laser projector system in order to create an interactive projection. With the various detection modes available, it can be adapted to any show, from the easiest laser Harp system to the most complete Interactive “laserman” show and does not require any communication or synchronization with the laser projector. Thanks to an exclusive and innovative detection system (patent pending), it is actually the most compact, competitive and versatile Laser interactive device on the market. The KB2D Interactive device can be combined with a 45° mirror to project the beams vertically for a Laser Harp configuration. Lightdiction proposes a special Mirror holder for this purpose. Both KB2D device and KVANT laser projectors can be fixed on it at the same time Footswitches or other external MIDI controllers can be used to improve the flexibility of the device during shows.
This Product bundle contains:
- Lightdiction Laser Harp Controller
- Lightdiction Standard Laser Harp Mirror
- Product manual
- USB Cable
KVANT Laser Harp (Standard)
Voltage, USB Powered, (Vin) Min: 4.5V
Typ: 5V
Max: 6VCurrent consumption, (Iin) Typ: 50mA Frames Per Second on detection (Can be set by User), (FPS) Min: 50
Typ: 90
Max: 130Bandwidth on beam detection (works with scanning systems), (BW) Min: 5Hz
Max: 50HzDdet is the distance between the detection system and the target (laser source projected on a white lambertian target). (*), (Ddet) Min: 0.3m (1), 0.8m (2)
Max: 6m (1), 14m (2)Field angle for beam distinction (X Dimension) (Beams are still detected outside of this range, but cannot be differentiated), (ΦX) Min: -27°
Max: 27°Wavelength detected (3) – By default, (λ) Min: 510nm
Typ: 520nm
Max: 535nmWavelength detected (3) – Optional, (λ) Min: 625nm
Typ: 635nmWavelength detected (3) – Optional, (λ) Min: 370nm
Typ: 445nm
Max: 470nmLength x Width x Height (mm) (Without the Handle) 100 x 32 x 58 Weight, (msys) 155g Ingress Protection, (IP) IP54
