Overview

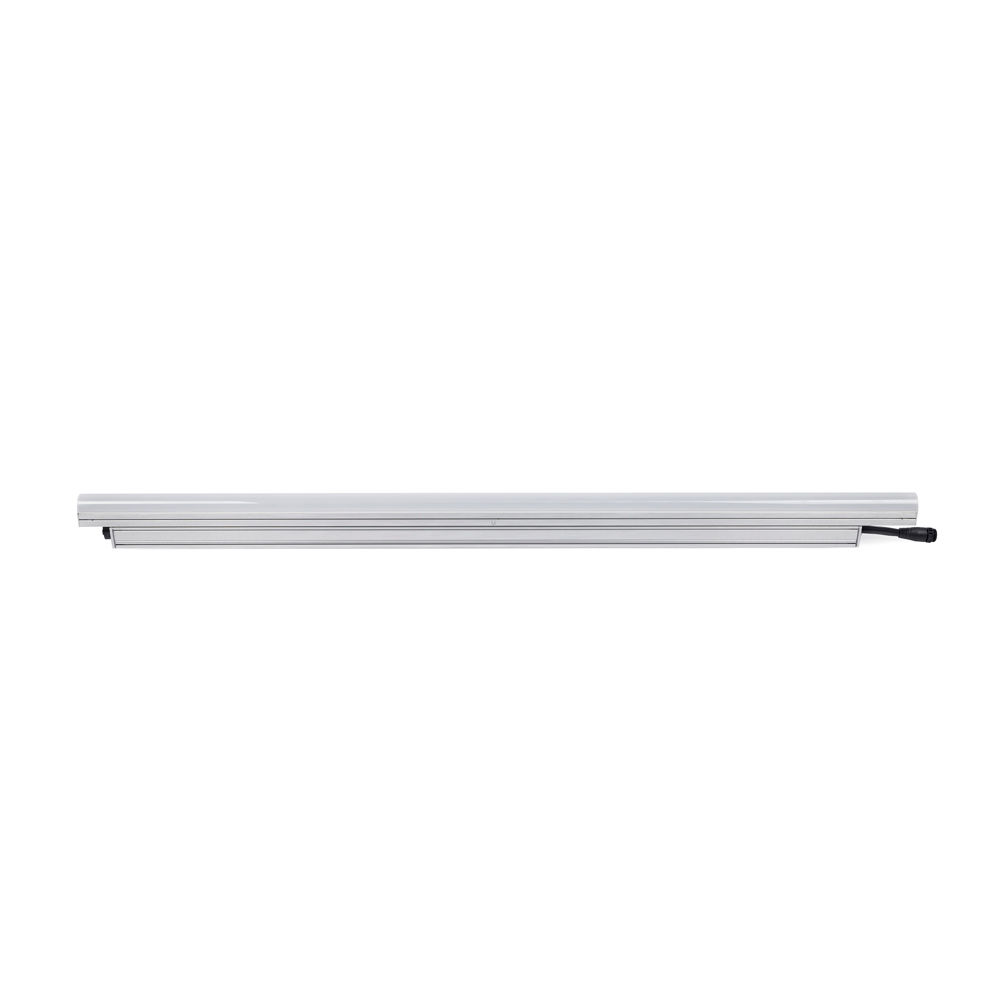

Martin Exterior Linear Pro DV (Direct View) QUAD lights are flexible, compact, LED-based architectural fixtures featuring high output, color boost technology and discreet yet robust housings. They are specifically designed for direct view applications and are equipped with a round diffuser and segment control for low resolution content and their high lumen output makes them highly visible in daylight situations. They are perfect for soft, direct view lighting solutions enhancing ceilings, walls and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other applications needing similar lighting enhancements.
DV QUAD models feature homogenized color mixing with 8 LEDs/ft and an integrated color boosting feature for full powered illumination of a single color or mixed colors. Each unit is factory calibrated for superior color consistency, making them up to three times brighter than comparable fixtures, yet boasting lower total power consumption. Logic RGB control of the RGBW engine is also included where white is automatically calculated.
Packed with intelligent features, these fixtures offer a dedicated color temperature control channel, which accurately follows the black body curve, empowering lighting designers to set their favorite default color temperature. Integrated segment control allows the fixtures to be controlled down to 6-inch (15 cm) segments, creating more organic and subtle color transitions.
With a high focus on sustainability, DV QUAD models can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design offers a variety of standard or custom bracket solutions.
The slim design of these lights makes them easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.

Features

Color-calibrated QUAD color LEDs (8 LEDs/ft)
Homogenous color mixing
Round diffuser for soft appearance and extended viewing angle
Dedicated color temperature control channel (1800K - 12000K)
Selectable segment modes (1, 4 or 8 segments)
Selectable power consumption (12W/10W/5W) per foot
Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
Hybrid power and data connector for easy daisy-chained configurations
DMX and RDM control
Integrated magnetic switch for local diagnostics
Rugged IP66 housing designed for permanent outdoor installations
Low weight 0.8 kg/ft (1.9 lbs/ft)
Compact design - 40mm (1.57 inch) width
