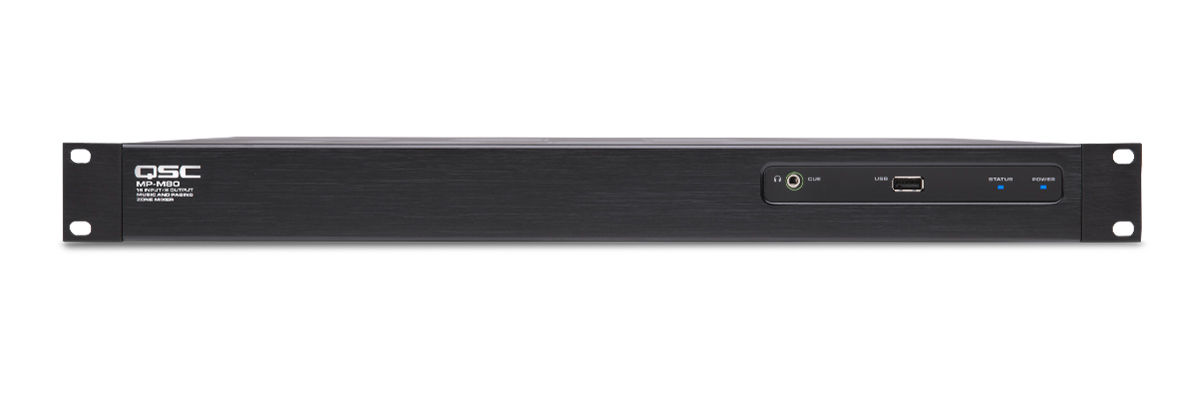

QSC MP-M80
QSC MP-M80
The QSC MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multiple zones. Live mixing functions are also supported for applications requiring reinforcement of entertainment, presentations or conferences.

QSC MP-M80

$2,060.00Precio

  • Inputs:

    • Total: 16
    • Mic/Line: (8) Euroblock (Phoenix)
    • RCA: (8) Mono-summed pairs

    Outputs:

    • Total: 10
    • Line: (8) Balanced Euroblock
    • Music-on-Hold: (1) Transformer-balanced Euroblock
    • Cue (Headphones): (1) Stereo 3.5mm jack

    Audio:

    • Sampling Frequency: 48kHz
    • Processing: 32-bit floating point
    • THD: <0.005%, +4dBu & -2dBr, 20Hz-20kHz, unity gain, any input to any output
    • Frequency Response: 20Hz-20kHz +/-0.5dB, mic/line or RCA input to any output
    • Dynamic Range: >106dB unweighted
    • Crosstalk: >90dB typical, >80dB typical
    • Gain (Mic Inputs): 51dB
    • Maximum Input Level: +24dBu (Mic/Line), +10dBV (RCA)
    • Maximum Output Level: +21dBu (Line-level), +10dBV (Music on Hold)
    • Phantom Power: +12V on all mic inputs
    • Latency: 2.3 msec

    Input Processing:

    • EQ: 4-Band parametric with high/low shelving option, variable 24dB/oct HPF & LPF
    • Dynamics: Compressor or Auto Gain Control (AGC), Gate

    Output Processing:

    • EQ: 28-Band Graphic (1/3 octave)
    • Anti-Feedback Filters: 12-Band variable notch filters
    • Dynamics: Compression/limiter, ducker, loudness
    • Delay: 100 msec
    • Loudspeaker Tunings:
      • Factory: Intrinsic Correction voicing for QSC loudspeakers
      • User: 6-Band parametric EQ, HPF, LPF, (Linkwitz-Riley or Butterworth; 12, 18, or 24dB/oct)

    Other Connections:

    • Ethernet: (1) RJ-45 for connection to router (not included)
    • MP-MFC Ports: (2) RJ-45
    • USB: (2) Type-A, 2.0 (USB WiFi, firmware and configuration uploads)
    • GPI: (2) Euroblock

    Additional Specifications:

    • Power Requirements: 100-240VAC, 50/60Hz, universal power supply, IEC connection
    • Indicators: Blue Power LED, blue Status LED
    • Dimensions: Width - 19.0", Height - 1.75", Depth - 16.50" (incl. power cord)
    • Net Weight: 7.0 lbs.
