Overview

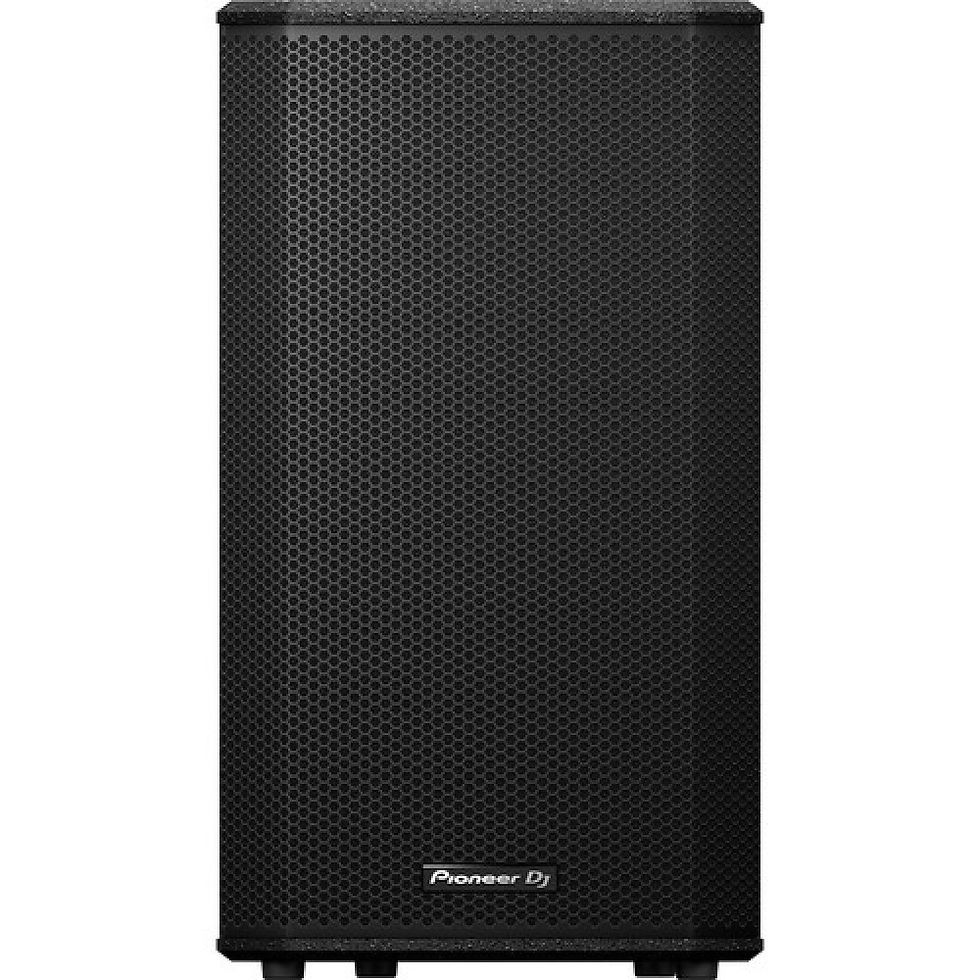

Pioneer DJ 12" ACTIVE 2-WAY SPEAKER (WOOD ENCLOSURE)
The XPRS122 is the larger full range speaker counterpart in Pioneer DJ’s XPRS2 Series. Featuring a 12” woofer and 3” voice coil with a 1” exit compression driver and 1.75” voice coil, the speakers deliver comprehensive sound coverage across mid to large audiences and venues. Boasting a frequency response of 48 Hz – 20 kHz and a maximum SPL of 131 dB, the versatile full range speaker delivers powerful sound built to thrive in even the harshest of sound environments such as a live DJ set.
Four DSP Modes:
Both of the XPRS2 full-range speakers contain four different DSP preset modes—Live, Music, Speech and Floor Monitor—to address the needs of different listening environments.
The Series Introduces Two New Active Loudspeakers and Subwoofers, Complete with High-Performance Components and Specialized DSP Settings for an Immersive Listening Experience.
Specs:
System Type: Multi-purpose, 2-way active loudspeaker with DSP controls
Transducer Low: 12” woofer, 3” voice coil
Transducer Driver: 1” exit compression driver, 1.75” voice coil
Frequency Response (-6 dB): 48 Hz – 20 kHz
Max SPL: 131 dB
Power Rating: Class D 2000 W (peak)
4 DSP Modes: Live / Music / Speech / Monitor
Electronic Protections: Thermal / Overload / Digital Limiter / Compressor
Connectors:
Input: MIC / LINE (Combo) / HI-Z / LINE (Combo) / 3.5 mm STEREO MINI
Output: MIX (XLR)
Power Supply: 110 V – 240 V (50 Hz / 60 Hz)
Power Consumption: 800 W
Enclosure Construction: Plywood cabinet, black paint, rubber feet, metal handle
Mounting: One standard metal pole-mount. 10 x M10 threaded inserts plus integrated pull-back cover.
Dimensions (W x H x D): 14.28” (362.7 mm) x 25.07” (637 mm) x 13.78” (350 mm)
Net Weight: 20.2 kg (44.6 lb.)
