Overview

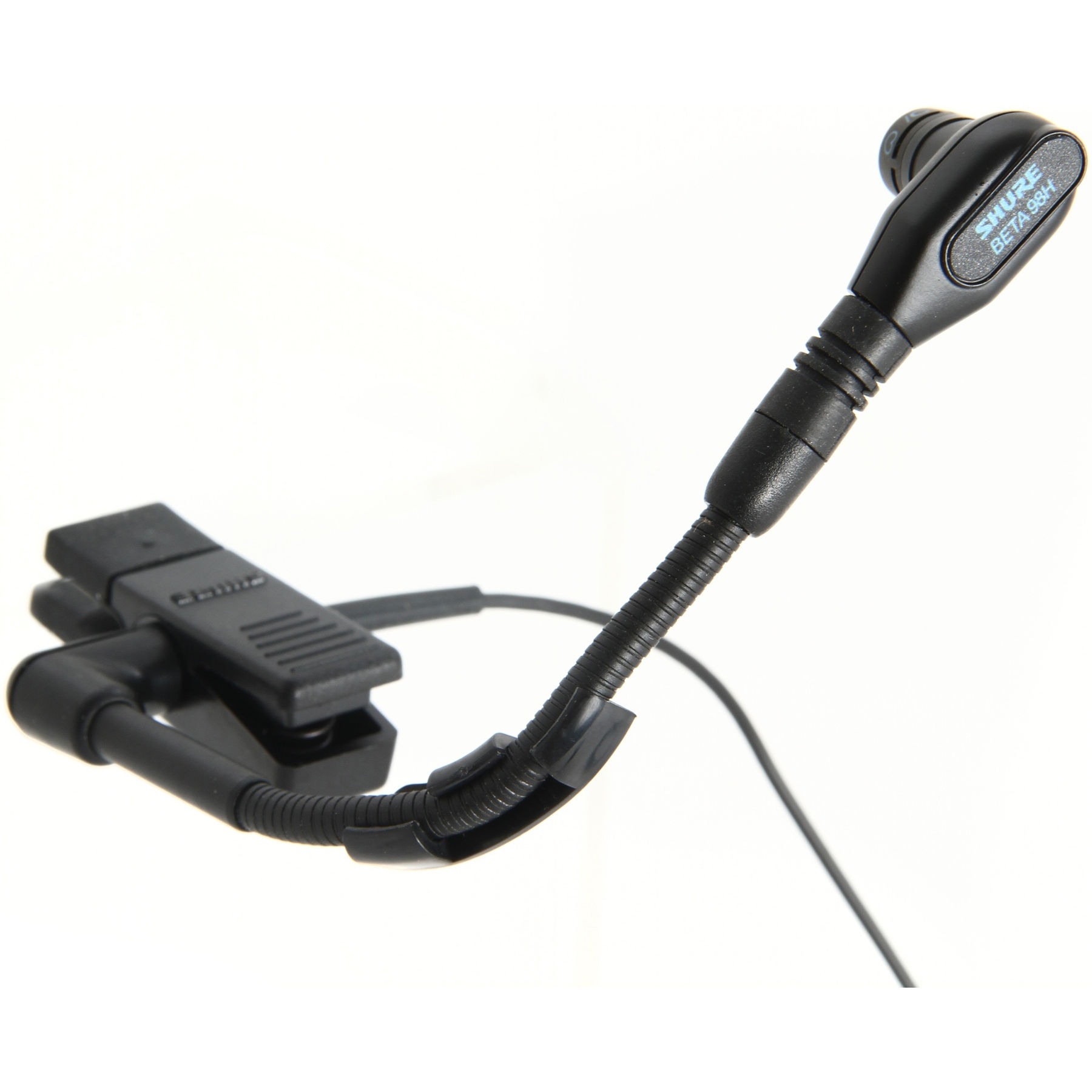

Shure WB98H/C BETA 98H/C Clip-on Condenser Instrument Microphone Terminated to 4-Pin Mini-connector (TA4F)



WB98H/C Instrument Microphone

The Shure WB98H/C (the wireless version of the Beta 98H/C) is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated Install Sound > Install Microphones > Gooseneck and ratcheting swivel joint allows the microphone to be easily positioned and secured in place and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A Install Sound > Install Microphones > Gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

WB98H/C with 10 ft. cable terminated to 4-Pin Mini-Connector.



Features:

  • The WB98H/C features transformerless preamplifier circuitry which improves linearity across the full frequency range.
  • The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise.
  • Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass woodwind and percussion instruments.
  • Tailored frequency response for studio quality performance
  • Wide dynamic range for use in high SPL environments
  • Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound
  • Optional A98D drum mount is unobtrusive and versatile--allows precise positioning of the microphone while holding it firmly in place
  • Compact design reduces stage clutter
  • Detachable cable for easy storage
  • Interchangeable microphone Live Sound > DJ Equipment > Cartridges with different polar patterns are available
  • Legendary Shure quality ruggedness and reliability

Shure WB98H/C BETA 98H/C Clip-on Condenser Instrument Microphone

$241.00 Precio
$186.00Precio de oferta
Cantidad
  • Transducer Condenser
    Polar Pattern Cardioid (Unidirectional)
    Frequency Response 20 Hz - 20 kHz
    Dynamic Range (Typical) 112.5 dB
    Signal-to-Noise Ratio 63 dB at 94 dB SPL (IEC 651)
    Maximum Input Sound Level 143.5 dB
    Power Requirements 5 V (pin 2 to pins 3 and 4) Note: Power is Provided by Wireless Transmitter
    Output Impedance 1200 Ohms
    Output Connectors 4-Pin, Tini Q-G Connector
    Dimensions not specified
    Weight not specified
    Packaging Info Packaging Info
    Package Weight 0.75 lb
    Box Dimensions (LxWxH) 10.1 x 4.9 x 3.4"
