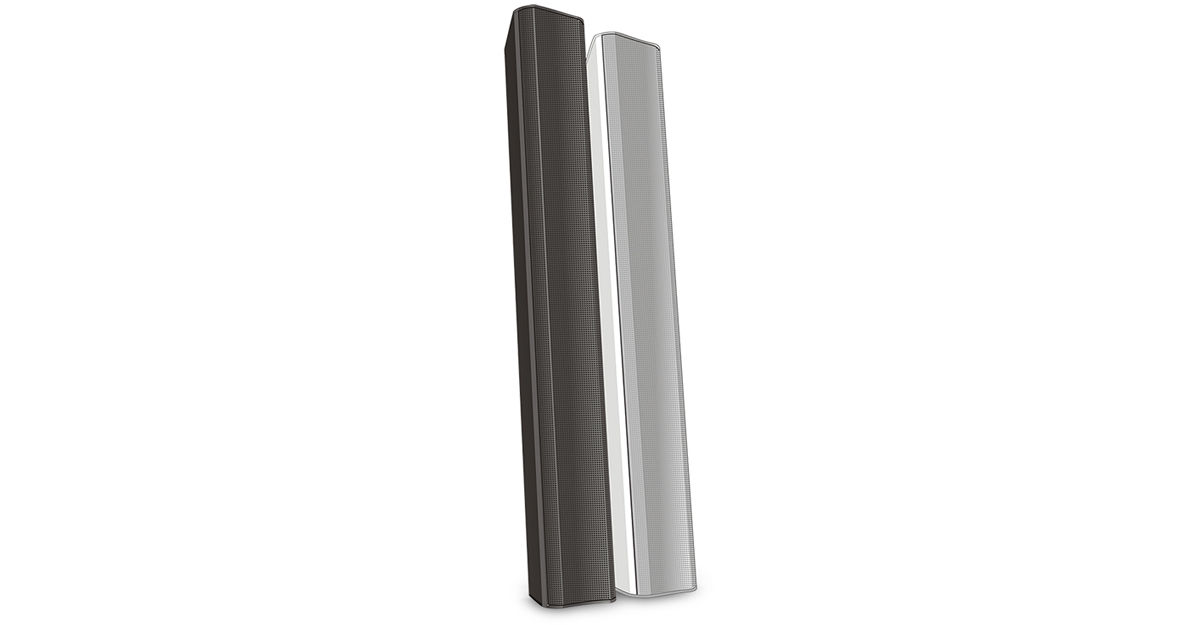

QSC AD-S162T-WH
The all-new AcousticDesign™ Series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Features
Deliberately unobtrusive industrial design.
Available in white (RAL 9010) or black (RAL 9011).
Paintable enclosure and grill.
Complete EASE, CLF, CAD & BIM information.
Rugged aluminum construction.
UV Inhibitors in all white models.
IP-54 rating for dust and splash resistance.
Powder-coated grills and weather-treated cones.
Close to wall pan/tilt bracket included.
Low saturation 70/100V transformers.
8 ohm low impedance bypass.
Selectable broad/narrow beam contour
Screw-down Euro block connector with loop-through.
Sealable input weather cup – keeps moisture away from wiring.
QSC AD-S162T-WH
System Details
AD-S162T
Effective frequency range 1
200 Hz – 17K Hz
Power Capacity 2
240 W
System Sensitivity
90 dB WIDE
92 dB NARROWCoverage Angle
Horizontal (-6dB)150° (1.2K Hz - 6K Hz) WIDE
150° (2K Hz - 6K Hz) NARROWCoverage Angle
Vertical (-6 dB)30° (900 Hz - 17K Hz) WIDE
15° (1.5K Hz - 17K Hz) NARROWOutput 4
(Peak SPL @ 1M)120 dB WIDE
122 dB NARROWDriver Information
(x16) 2.5-inch weather resistant paper cone woofer
Rated Impedance
8 ohm
Input Connectors
4-pin Euro terminal
Enclosure
Aluminum
Ingress Protection
IP-54
Net Weight
TBD
