MAKARA dBL21-MK3: Packed with Power and Precision
This high-output Dual-21" Powered Subwoofer delivers deep, intense bass, thrilling all of your senses in its connection of auditory and physical immersion.
The Makara shares much of its DNA with the mighty KRAKEN. For audiences who have never heard notes this deep, the experience is unforgettable and instantly addictive. Like the Kraken, the Makara not only goes deep, it also administers a fearsome impact delivered by the short-horn loading of the fronts of the cones.
This legendary creature achieves an enormous max sustained output of 140 dB SPL at 1 meter in a half-space (ground plane) environment, with a peak SPL of 143 dB, and a 3 dB Frequency Response of 23 Hz to 110 Hz*.
With 5,000 Watts of power on tap, derived from two onboard discrete 2500 Watt Class-D global power amplifiers, the Makara ensures robust and reliable performance.
Its integrated comprehensive DSP provides high-pass filters, low-pass filters, equalization, phase alignment, cardioid processing, and multi-stage limiting for precise sound management. A cardioid mode is available to provide directional control when multiple cabinets are appropriately arrayed.
The 18mm Marine Grade Birch enclosure uses dado joinery and is extensively braced for the utmost strength and durability. Its black, textured, bonded, high-pressure polyurea coating is weatherproof, making it suitable for any environment. 35mm pole sockets are provided on all four sides. Equipped with four steel bar handles and UHMWPE strips as sliders/feet, the Makara is designed for easy transport and stable setup. The Makara sliders interlock with each other, and with the Kraken, providing the ideal building blocks for a wall of bass.
The Makara is the latest embodiment of BASSBOSS's commitment to facilitating unforgettable experiences through powerful products.
(* Upper Limit FR: 70Hz to 110 Hz - Preset Dependent)

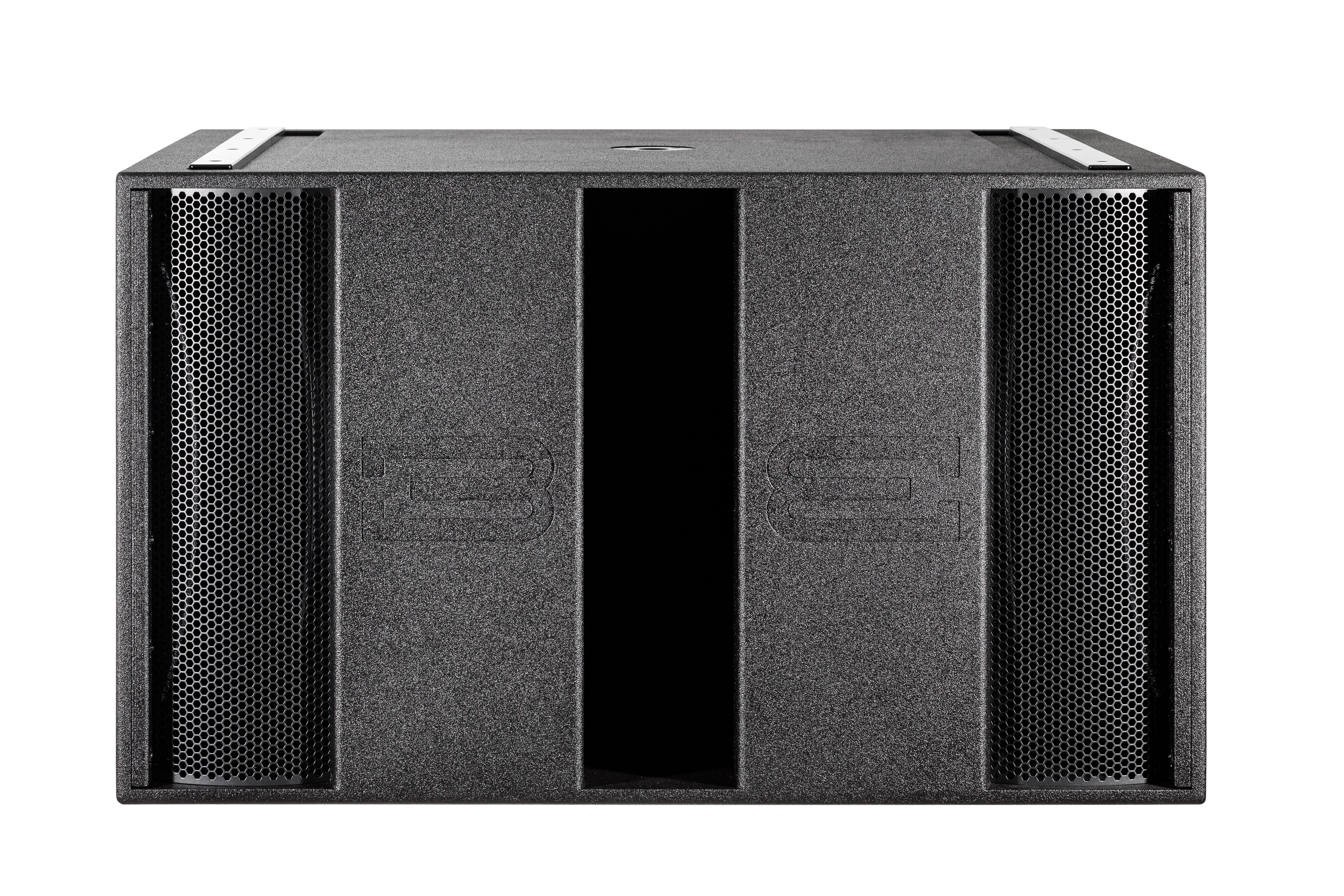

BASSBOSS MAKARA-MK3 Active Subwoofer
- MAKARA dBL-21-MK3 Double 21" Powered Subwoofer
- Subwoofer Type: Dual-21 inch Active 6th-order Bandpass
- Frequency Response:
- Lower limit: 23Hz (-3 dB)
- Upper limit: 70-110Hz (-3 dB), preset dependent
- Maximum Output:
- Max sustained output: 140dB SPL at 1 meter (half-space)
- Peak SPL: 143dB
- Drivers: Two 21" transducers with 4.5" CCAW voice coils and Neodymium motors
- Amplifiers: 5000 Watts Class D (2 x 2500W)
- Peak output voltage up to 160V and peak current output up to 40A
- Max 2500 Watts per voice coil/driver
- Processing: Integrated DSP, 96kHz sampling, 8 onboard presets
- Presets include high-pass filters, low-pass filters, equalization, phase alignment, multi-stage limiting
- Cardioid mode available for multiple units
- Voltage Operating Range: 90-250V AC, 50-60Hz (auto-sensing, auto-switching)
- Full amplifier output on 110V+ AC power
- I/O:
- Electrical:
- Amp Connector: Neutrik powerCON True 1 TOP - IP65 rated
- Mains Connector: Standard US 3-pin 120V plug NEMA 5-15 (Edison)
- Signal:
- Input: XLR-F
- Output: XLR-M (direct pass-through only)
- ControlBASS Network: EtherCON / RJ45 x 2 (Cascading LAN)
- Electrical:
- Enclosure:
- CNC Machined 18mm Marine Grade Birch plywood with extensive bracing and dado joinery
- Equipped with 4 steel bar handles and 4 UHMWPE sliders/feet
- 35mm pole sockets on all 4 sides
- Net Weight: 294 lbs
- Shipping Weight: 330 lbs
- Cabinet Dimensions: 28" x 48" x 36" (28.5" high with feet, horizontally positioned)
- Finish: Weatherproof black textured, bonded, high-pressure polyurea coating
- Optional Accessories:
- AMS-BB-KRAKEN-H-WC - Wheel Cart for horizontal transport
- AMS-BB-MAKARA-V-WC - Wheel Cart for vertical transport
