Overview
The ARTEC-306-W 2-way passive full range loudspeaker utilizes a 6″ low frequency transducer and the M-26 compression driver. The cabinet manufactured using top quality of Birch plywood and finished with a durable white paint finish. Thanks to its small size, it is ideal for venues with low ceilings, or limited space.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.
Features
- 1 x 6B low frequency loudspeaker
- 1 x M-26 compression driver
- Rotatable 90º x 60º horn
- Vertical or horizontal positioning
- VESA75/VESA100 standard threaded mounting points
- AXU-A306-W U-Bracket included
Applications
- A/V systems and corporate events
- Meeting rooms, classrooms, and exhibit areas
- Installations in bars and clubs

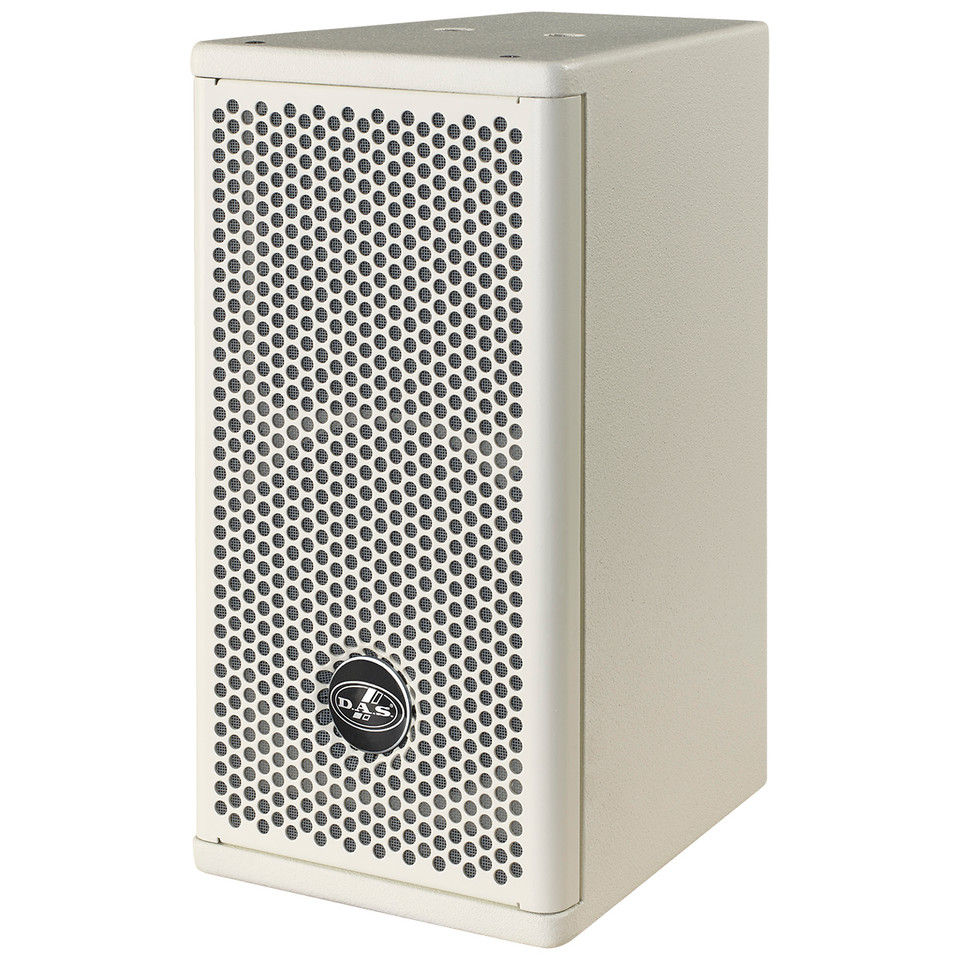

DAS 100 W, 6" two-way full range, wooden enclosure, 90x60 rotatable horn, white
Performance Frequency Range (-10 dB) 70 Hz – 20 kHz Horizontal Coverage (-6 dB) 90º Vertical Coverage 60º Nominal Impedance 8 ohms RMS Power Handling 100 W Peak Power Handling 400 W On-axis Sensitivity 1W/1 m 90 dB SPL Maximum Peak SPL at 1 m 116 dB Recommended Amplifier PA-900 Recommended Processor DSP-226 Connectors Audio Input Connector Covered Barrier Strip Terminals Audio Output Connector Covered Barrier Strip Terminals Enclosure Enclosure Construction Birch Plywood Enclosure Geometry Trapezoidal Rigging M10 Rigging Points Finish ISO-flex Paint Color White Depth 260 mm (10,2 in) Dimensions ( H x W x D ) 385 x 195 x 260 mm
15,2 x 7,7 x 10,2 inNet Weight 7,2 kg ( 15,8 lb ) Components LF Driver 6B HF Driver M-26 Horn/Waveguide BCT-96 Shipping Carton Dimensions ( H x W x D ) 471 x 266 x 330 mm
18,5 x 10,5 x 13,0 inShipping Weight 9,2 kg ( 20,3 lb )
