Overview
The JBL Control 440CS/T, part of the flagship Control 400 Premium Coverage Series, is a high-power, low-distortion in-ceiling subwoofer, featuring an 8” woofer, passive crossover, and an extremely durable, reinforced enclosure.
Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 440CS/T supports both 70V/100V and low impedance applications.
Features
- 200 mm (8 in) woofer with SBR surround
- Integrated enclosure with large, tapered dual ports for warm, smooth bass response
- Built-in passive crossover network enabling it to be used as part of a subwoofer-satellite system
- Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated

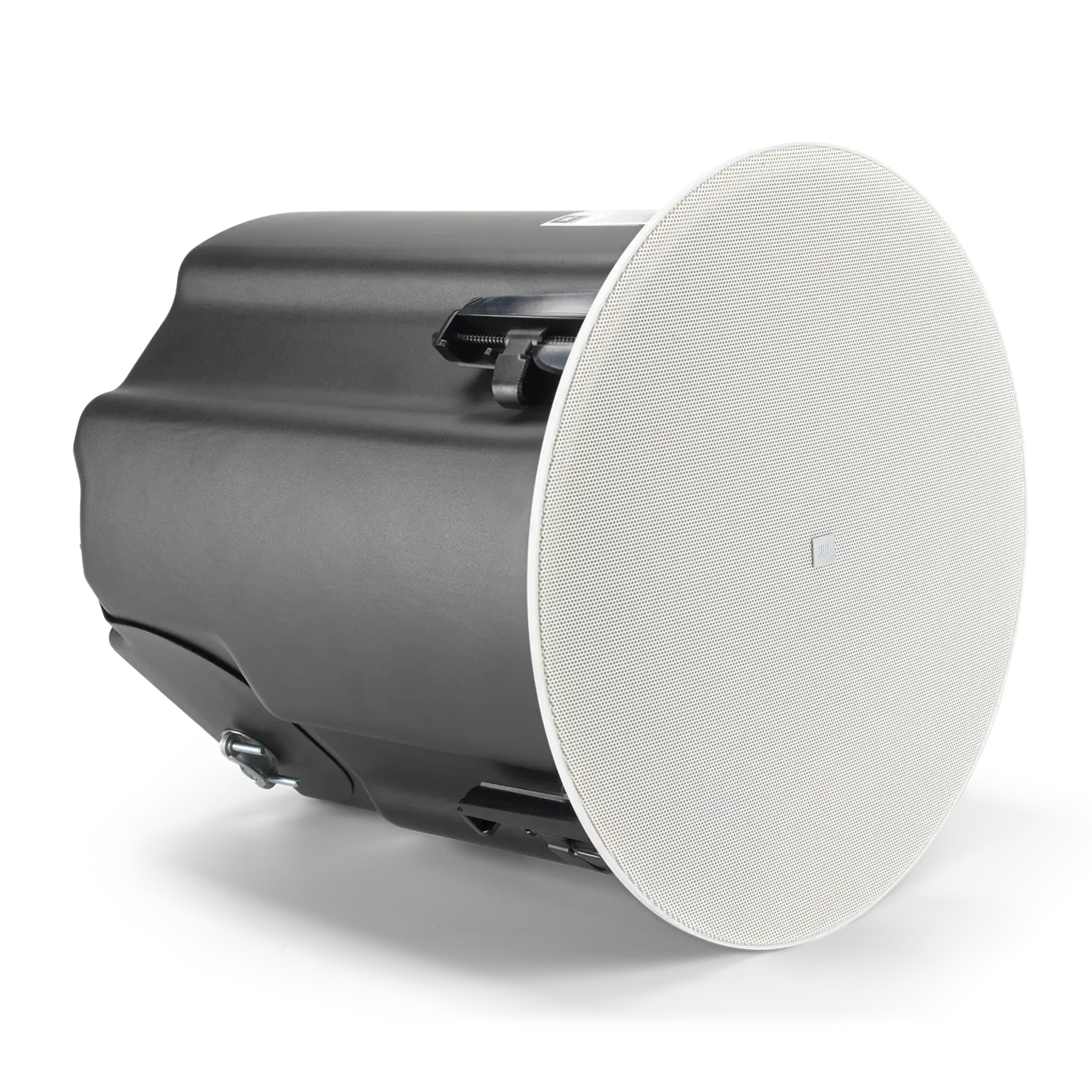

JBL Control 440CS/T-U Premium Coverage Series Ceiling Subwoofer
Frequency Range (-10 dB) 32Hz - 300Hz Power Capacity 150 W (600 W Peak), Cont. Pink Noise (2 hrs.)
100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.)Sensitivity (1m/1W) 95dB in ceiling near corner (π/2 loading) Coverage Angle - Maximum SPL (1m) 117 dB Cont. pink noise (123 dB peak, π/2 loading) Nominal Impedance 8Ω Transformer Taps 70 V: 80 W, 40 W, 20 W & 10 W
100 V: 80 W, 40 W, 20 WDrivers 200 mm (8 in) treated paper cone with SBR surround and high-performance magnet Ceiling Cutout Size 307 mm (12.1 in) Dimensions 351mm (13.8 in) H x 342 mm (13.5 in) dia.
337mm (13.3 in) from bottom of ceiling tile to top of backcanSafety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.Optional Accessories JBL-MTC-440BG black (RAL9004) round grille
JBL-MTC-440SG white (RAL9003) square grille
JBL-MTC-419NC new construction bracket
JBL-MTC-419MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tilesColor Stock grille is White (RAL9003), paintable Net Weight (ea) 8.72 kg (19.22 lbs) Shipping Weight (pair) 25.02 kg (55.16 lbs) SKU Numbers JBL-C440CS/T
