Overview
The JMAZ Professional ZONA DWS redefines modern house lighting by delivering exceptional white light quality, silent operation, and refined performance in a compact, installation-friendly fixture. Designed for theaters, worship spaces, broadcast environments, and multipurpose venues, it provides smooth color temperature adjustment from 2700K to 5600K with a CRI of 95+ for natural, accurate illumination. Its fanless design ensures completely silent operation, while smooth dimming enhances the audience experience without distraction. Integrated RGB LED ring effects offer an additional layer of visual creativity when the application calls for it, allowing venues to incorporate subtle accents and immersive environmental lighting. Whether illuminating an audience, enhancing architectural spaces, or creating welcoming venue atmospheres, the ZONA DWS delivers professional performance and reliability in a compact form factor.
features:
- Dual 60W warm white and cool white COB LEDs combine for 120W of high-quality output, delivering smooth color temperature blending from 2700K–5600K for audience, architectural, and house lighting applications.
- High CRI of ≥95 ensures exceptional color rendering and natural skin tones, making audiences, presenters, and performance spaces look their best.
- Integrated three-ring RGB effect system featuring 150 SMD LEDs and 31 built-in ring color macros adds decorative accents, ambient effects, and visual interest beyond traditional house lighting fixtures.
- Wide 60° beam angle provides smooth, even coverage across seating areas and venues, while an optional 30° lens offers enhanced beam control for more focused applications.
- Completely fanless design delivers silent operation, making it ideal for theaters, houses of worship, broadcast studios, performing arts centers, and other noise-sensitive environments.
- Professional control features including DMX, RDM, 16-bit dimming, four dimming curves, six DMX personalities, and optional CRMX wireless DMX support provide precise control and seamless integration into modern lighting systems.

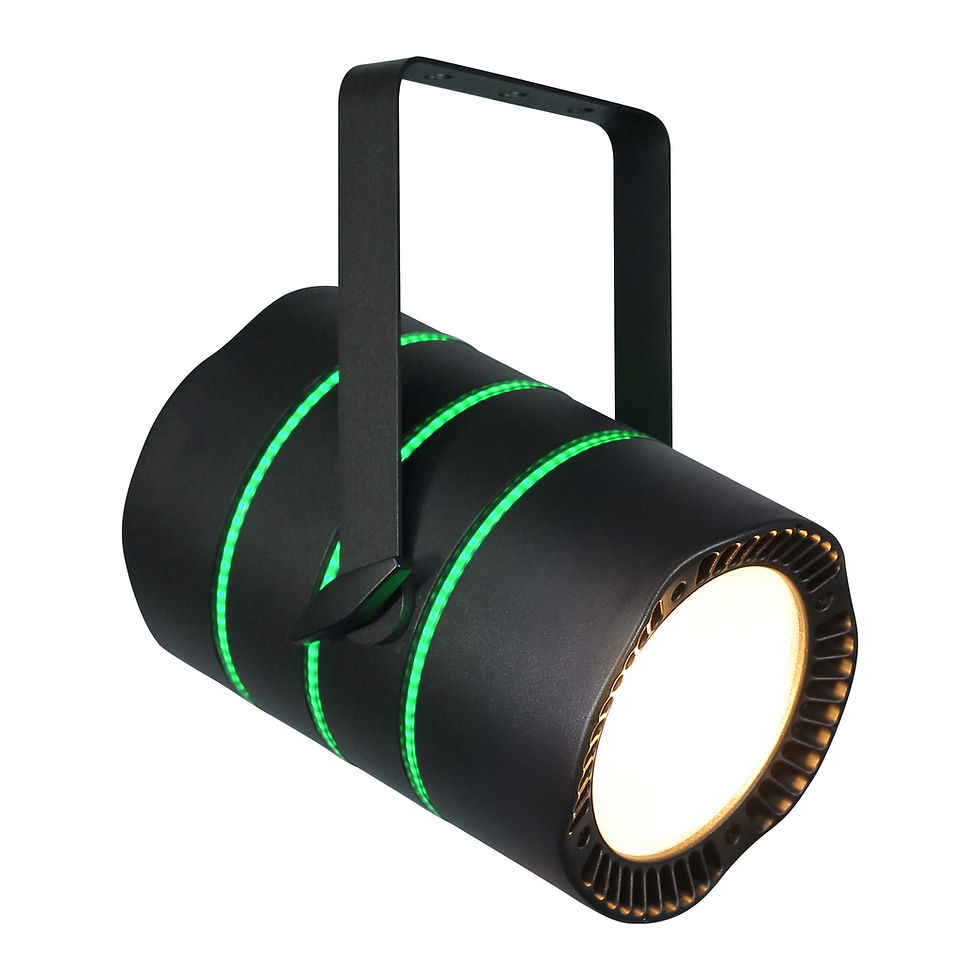

JMAZ JP4003 Zona DWS CW+WW LED House Light
Light Source
- 60W COB Warm White LED
- 60W COB Cool White LED
- Light Source: 3 Ring Effect: (150) 0.3W RGB SMD LEDs
- LED Life Expectancy: 50,000 hours
Color System
- CTO: 2700K – 5600K
- CRI: ≥ 95
Optics
- Advanced Optics Beam Angle: 60°
- Optional Lens Available: 30°
Dynamic Effect
- Virtual Color Wheel
- 31 Preset Color Macros on LED Rings
- Color Temperature Presets: 2700K – 5600K
- Linear Dimmer: 0 – 100% Electronic Dimming
- Shutter/Strobe:
1-25Hz Shutter / Strobe Effect with Variable Speed - Preset Pulse Strobe Effect with Variable Speed
- Random Strobe Effect with Variable Speed
- Dimming Curves: 4 (Linear, Square, F-Square, S-Line)
- Dimming Mode: 4
- Built In Auto Programs: Yes
Control
- Control Protocol: DMX, RDM (Remote Device Management)
- Optional Add-On Wireless DMX: CRMX USB – Powered by LumenRadio SKU: JP5001)
- Personalities: 6 Modes: 3/5/10/16/19/28
- LED Graphical Display
- Standalone Mode
Body
- Die-Cast Aluminum and Steel Structure
- External Finish: Mute Black
- Optional: Half Snoot Kit Available
Physical
- IP Rating: 20
- Cooling: Fanless (Silent Performance)
- Bare Wire Block Terminal Connection: Both power & DMX for Permanent Fixed Install
- Power Connection: US Edison (UL Listed) Plug to Seetronic Powercon IP65 TRUE1
- Power Input: Seetronic Powercon IP65 TRUE1
- Power Output: Seetronic Powercon IP65 TRUE1
- Data Connectors: Seetronic 5-Pin XLR IN/OUT
- Cable Length: 5 feet (1.5 meter)
- Certification / Qualifications:
cETL (Pending), RoHS, CE, FCC - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 45 ° C ( 113 ° F)
Electrical
- Input Voltage: 100V – 240V AC 50/60Hz
- Power Consumption: 90W
- Fuse: T3A, 250V
- Power Linking for connecting fixture in daisy-chain:
Up to 24 Units @110V with a 20A Circuit
Up to 47 Units @208V with a 20A Circuit
Up to 52 Units @220V with a 20A Circuit
Box Content
- 1x ZONA DWS
- 1x Hanging Yolk
- 1x Powercon IP65 TRUE1 Power Cable
- 1x 5-Pin DMX Cable
- 1x Safety Cable
- 1x Manual
Item Dimensions & Weight
- Dimensions:
10.3″ x 7.1″ x 7.1″ - Weight: 11.12lbs
