Architect W400B

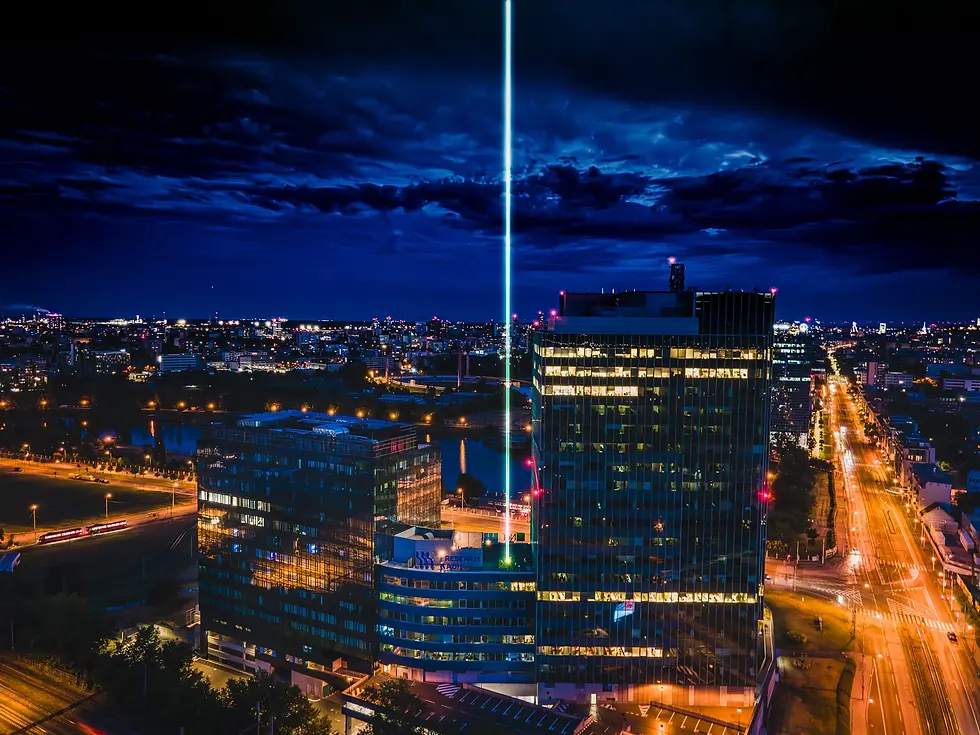

The new 2nd generation of Architect high-power static-beam lasers (sometimes called sky lasers or landmark lasers) is our reaction to globally increasing demand for super bright lasers. These are great for highlighting significant landmarks, structures and buildings.

The beam coming out of the Architect systems draws attention from many miles away. It adds a great deal of sublimity to already majestic nature-made, or human-made objects, making them even more unique, appealing and desirable.



The Architect Sky Lasers will pinpoint any place sky-high - literally!
Making that location distinct from very far away, from every direction and to all.

Kvant Architect W400B

$104,382.00Price
Quantity
  • Source | Type:

    Semiconductor laser diode | Full-colour RGB static-beam laser projector/Sky laser
    Suitability: Architectural outdoor installations | Landmark and Sky illumination
    System control: Analog 0-5 Volts or DMX

    Compliant with:

    EN 60825-1
    Ingress Protection Rating: IP65
    Weight [kg]: ~ 50
    Size [WxHxD, mm]: 600 x 600 x 400 [Technical Drawings are in the SUPPORT section of this page]

    Guaranteed opt. output: 400 watts
    R | G | B [W]:

    114 | 188 | 110
    Wavelengths [nm, ±5nm]: 637 | 525 | 455

    Beam size [mm]: 220 x 380
    Luminous flux [lm]: 121,200
    Beam divergence [mrad]:

    5 [full angle, averaged value]
    Cooling: water + 15% glycol, 6-10 l per minute, 20 degrees Celsius
    Dimming: 0 - 100%
    Max. power consumption [VA]: 2200
    Operation temperature [°C]: 0-40
    Recommended chiller model: SMC HRR030-A-20
    Chiller power consumption [VA]: 1600
    Chiller size [WxHxD, mm]: 483 x 686 x 399
    Chiller weight [kg]: 46
