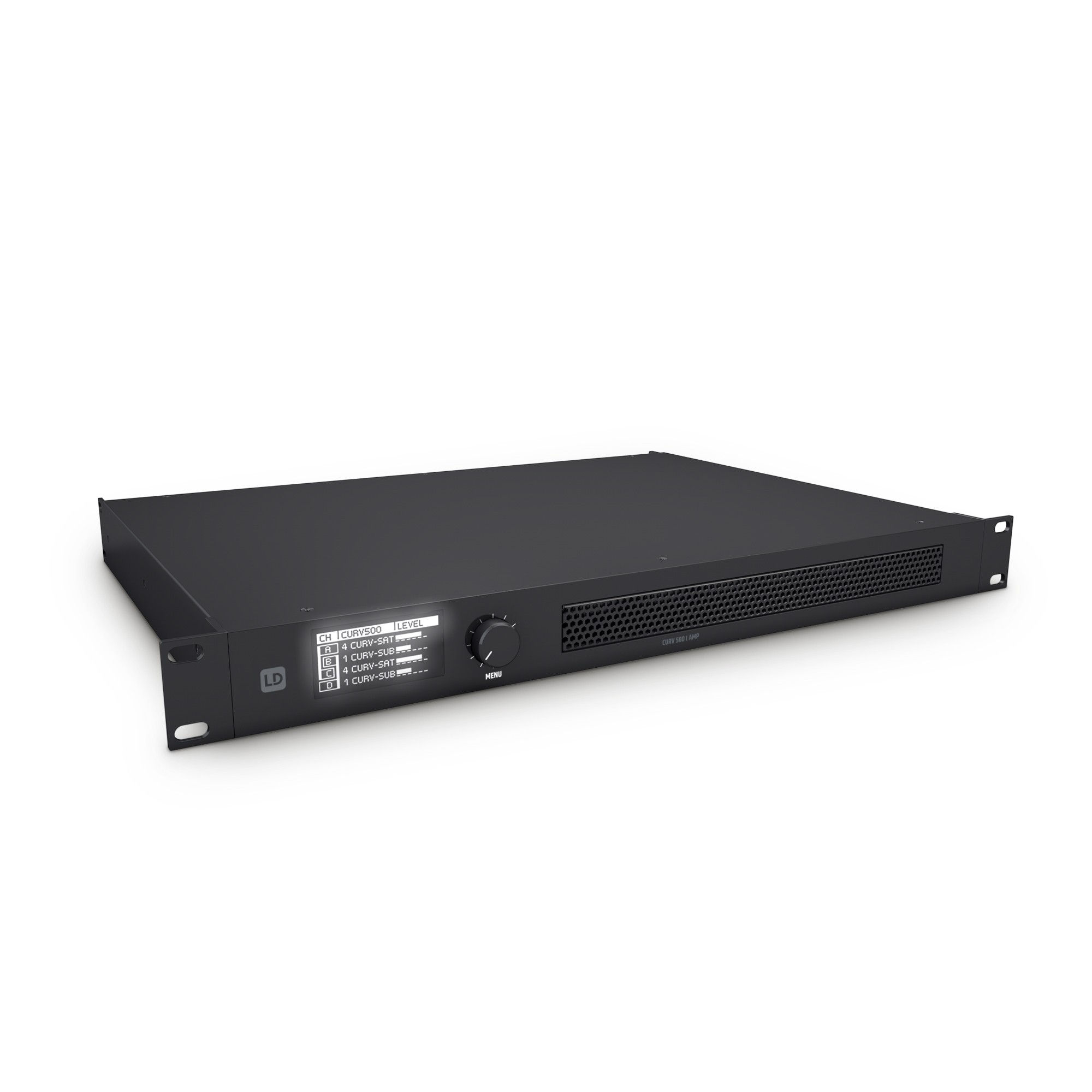

LD Systems CURV500IAMP - 4-Channel Class D Installation Amplifier
Overview

Purpose-designed for CURV 500 installations the I AMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz � 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD.
Operating the I AMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan. Input is on balanced XLR and terminal block connectors. The I AMP is capable of driving up to six CURV 500 satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.

Features
  • 4 channels with DSP control
  • Purpose-designed for CURV 500 installations
  • Low-profile 1U 19" rackmount construction
  • Drives up to six CURV 500 satellites or one CURV 500 ISUB subwoofer per channel
  • Single push encoder operation
  • High-contrast OLED display
  • Temperature controlled low-noise fan
  • High-efficiency switch mode power supply
  • Only 6.8 kg

LD Systems CURV500IAMP - 4-Channel Class D Installation Amplifier

$0.00Price
Quantity
  • Product type: Power Amplifiers
  • Type: Installation Power Amplifiers
  • Rated ouput power (1kHz @ 2,7 Ohms): 4 x 240 W
  • Rated ouput power (1kHz @ 4 Ohms): 4 x 240 W
  • Rated ouput power (1kHz @ 8 Ohms): 4 x 120 W
  • Rated ouput power (1kHz @ 16 Ohms): 4 x 60 W
  • Output circuitry: Class D
  • Frequency response: 10 - 22000
  • Total Harmonic Distortion (THD): < 0,01 %
  • Protection circuits: DC,over-current,Short circuit,soft start,thermal overload
  • Controls: Push encoder
  • Indicators: OLED Display
  • Line inputs: 4
  • Line input connectors: Terminal block,XLR
  • Loudspeaker outputs: 4
  • Speaker output connections: Speakon compatible,Terminal block
  • Cooling: temperature controlled low-noise fan, noiseless in idle mode
  • Power supply: Switching power supply
  • Power consumption @ full load: 1100W
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz,Switch mode power supply with power factor correction (PFC)
  • Width: 482 mm
  • Height: 44 mm
  • Depth: 420 mm
  • Weight: 6,8 kg
