Overview

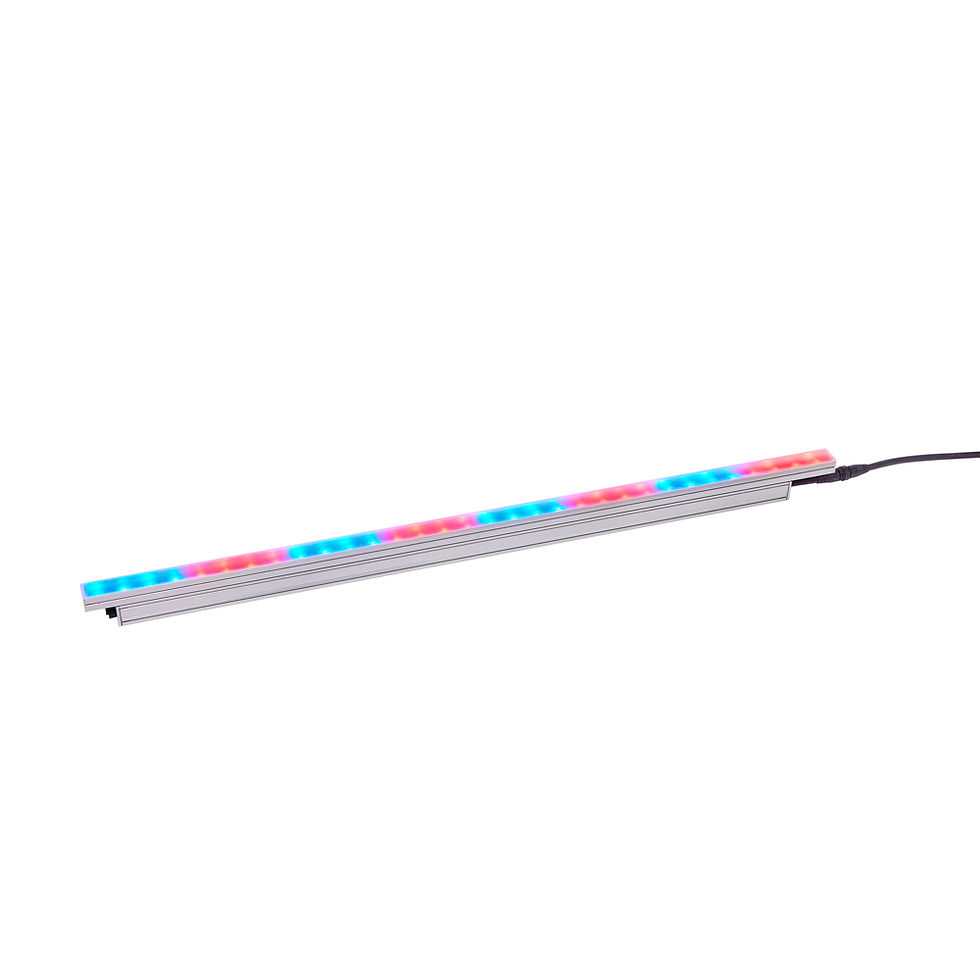

Martin Exterior Linear Pro Cove QUAD lights are flexible, compact, LED-based architectural fixtures featuring high output with color boost technology and discreet yet robust housings. They offer uniform light distribution with a 100 degree beam angle that’s perfect for striking indirect lighting of ceilings, walls and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels, or other permanent indoor or outdoor installations.
These lights feature homogenized color mixing with 8 LEDs/ft and an integrated color boosting feature for full powered illumination of a single color or mixed colors. Each unit is factory calibrated for superior color consistency, making them up to three times brighter than comparable fixtures, yet boasting lower total power consumption. Logic RGB control of the RGBW engine is also included where white is automatically calculated.
Packed with intelligent features, Cove QUAD models offer a dedicated color temperature control channel, which accurately follows the black body curve, empowering lighting designers to set their favorite default color temperature. Integrated segment control allows the fixtures to be controlled down to 6-inch (15 cm) segments, creating more organic and subtle color transitions.
With a high focus on sustainability, Cove QUAD models can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy, and a smart mounting plate design offers a variety of standard or custom bracket solutions.
The slim design of these lights makes them easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.

Features

Color-calibrated QUAD color LEDs (8 LEDs/ft)
Homogenous color mixing
100° beam angle for indirect lighting applications
Dedicated color temperature control channel (1800K - 12000K)
Selectable segment modes (1, 4 or 8 segments)
Selectable power consumption (12W/10W/5W) per foot
5W/ft power mode meets ASHRAE standards for linear facade lighting
Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
Hybrid power and data connector for easy daisy-chained configurations
DMX and RDM control
Integrated magnetic switch for local diagnostics
Rugged IP66 housing designed for permanent outdoor installations
Low weight 0.8 kg/ft (1.9 lbs/ft)
Compact design - 40mm (1.57 inch) width
