Overview
The VC-Grid 30 is a small, 240 x 240 mm LED video module with a 30 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.
- Wide range of pixel pitches to suit every application
- Easy cabling, mapping and configuration
- Bright and fully calibrated for optimal consistency
Features
- 64 individually controllable pixels
- 30 mm pixel pitch
- 2750 nits of brightness
- High-quality 16-bit per color image processing technology
- Pixel-level brightness and color calibration for optimal image quality
- P3/DMX controllable (automatic protocol detection)
- Intuitive mapping and addressing via P3 System Controller
- Combined power/data input (single cable for power and data input)
- Combined power/data thru (to daisy-chain up to 12 VC-Grid 30s)
- Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system

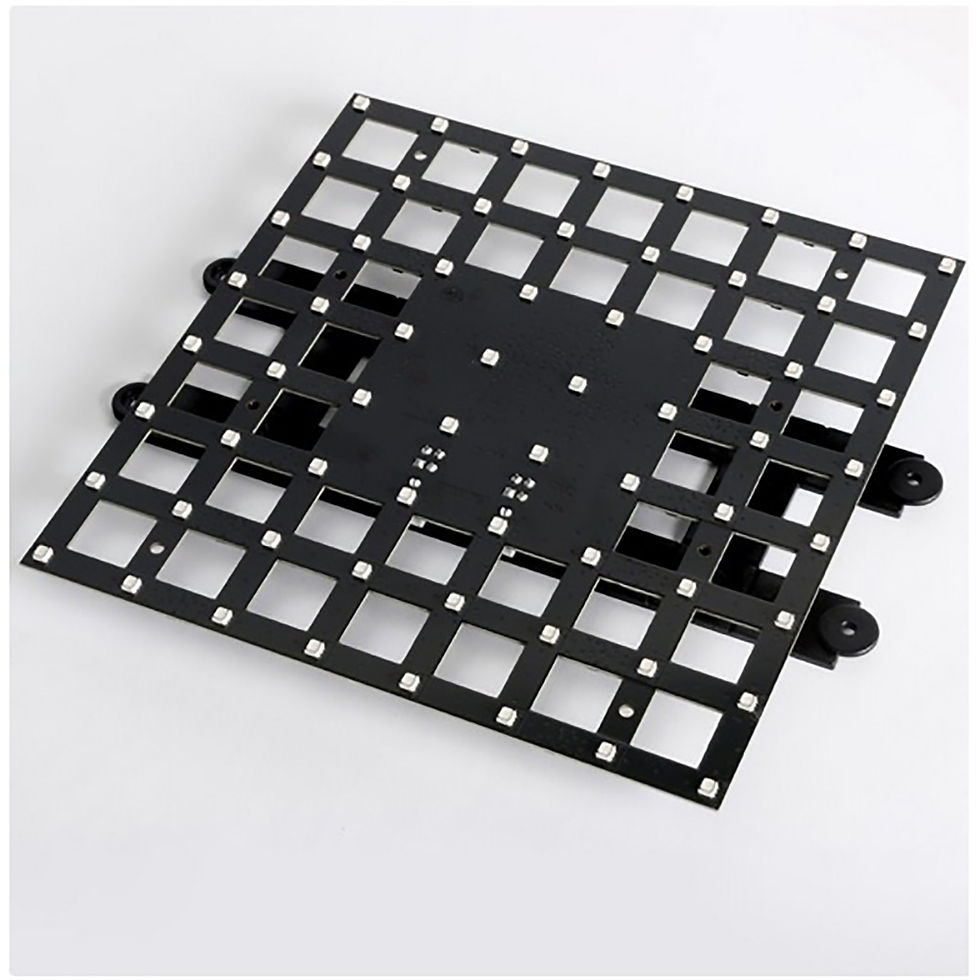

Martin VC-Grid 8x8 30 RGB (sold in multiples of 4) VC-Grid 8x8 30 RGB
Physical
Length: 240 mm (9.5 in.)
Width: 240 mm (9.5 in.)
Height: 15 mm (0.6 in.)
Weight: 157 g (0.35 lbs.)
Including 20 mm (0.8 in.) board-to-board gap
Control and Programming
Control options: Martin P3 System Controller via Martin P3
PowerPort 1500 and/or DMX
Control modes: Pixel and module
Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
Protocol detection: Automatic
Setting and addressing: P3 System Controller or RDM-compliant controller
DMX channels (RGB): 192 (pixel mode) or 3 (module mode)
Color and intensity calibration: Pixel-level
Firmware update: Via P3 System Controller
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Control/User Interface
Device status: Multi-color visual indication
Device test and reset: Pushbutton to call up local test patterns and reset device
Optics
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
Figure obtained under manufacturer's test conditions.
Photometric Data
Pixels: 64 per module
Luminous intensity, calibrated mode: 2750 Nit
Viewing angle: 120° x 120°
Preliminary data, figures are approximate
Video Processing
Brightness control
Gamma correction and control
Color temperature control
Color gamut control
Calibration processing
Synchronization
Construction
Base: Black FR4 circuit board
Transparency through module (unmasked area): 44%
Protection rating: IP20
RoHS compliant
Installation
Mounting: Mounting holes in module
Orientation: Any
Maximum number of VC-Grid™ 8x8 25 modules per daisy-chain: 12
Connections
Power & data input: 4-pin Molex connector
Power & data thru: 4-pin Molex connector
Electrical
Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500 or external PSU
Peak power consumption (at full intensity, full white): 30 W
Typical power consumption (with typical video content): 10 W
Figures for typical video content are indicative only and will vary.
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -20° C
Peak heat dissipation (calculated, at full intensity, full white): 105 BTU/hr.
Typical heat dissipation (calculated, with typical video content): 35 BTU/hr.
Figures for typical video content are indicative only and will vary.
Approvals
EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety: ANSI/UL 60950-1
Canadian safety: CSA C22.2 No. 60950-1
