Overview

The Martin VDO Atomic Dot CLD hybrid lighting and video fixture, also available in a WRM color temperature variant, combines a compact strobe, small blinder, video-pixel and small spotlight.

By combining a video-controlled Aura backlight and a bright strobe/blinder dot in one fixture, lighting designers are empowered with greater creative potential to make a bigger impact with audiences than ever before. The fixtures’ compact design also gives designers the ability to place VDO Atomic Dots just about anywhere and deploy them in larger quantities. Integrated support for P3, DMX, Art-Net and sACN eliminates the need for additional interface boxes and onboard P3 eases pixel mapping and using the product as a video controlled strobe or blinder.

VDO Atomic Dots are ideal for rental customers and lighting designers working in concert/touring and TV show sets as well as supporting corporate and nightclub clients.

Features

High power cold white beam (5700K)
Beam angle of 11 degrees
Field angle of 22 degrees
Pixel-controllable RGB Aura backlight
Compact form-factor
Built-in power supply (100-240V)
Power and Data IN & THRU via hybrid cable
P3, DMX, Art-Net & sACN compatible
Built-in pixel-FX on backlight and beam
Front-accessory holder for barndoors and/or diffuser/lens
Detachable yoke-assembly
Smart interlocking mechanics to build battens, arrays and creative shapes
Passive cooling
IP65-rated

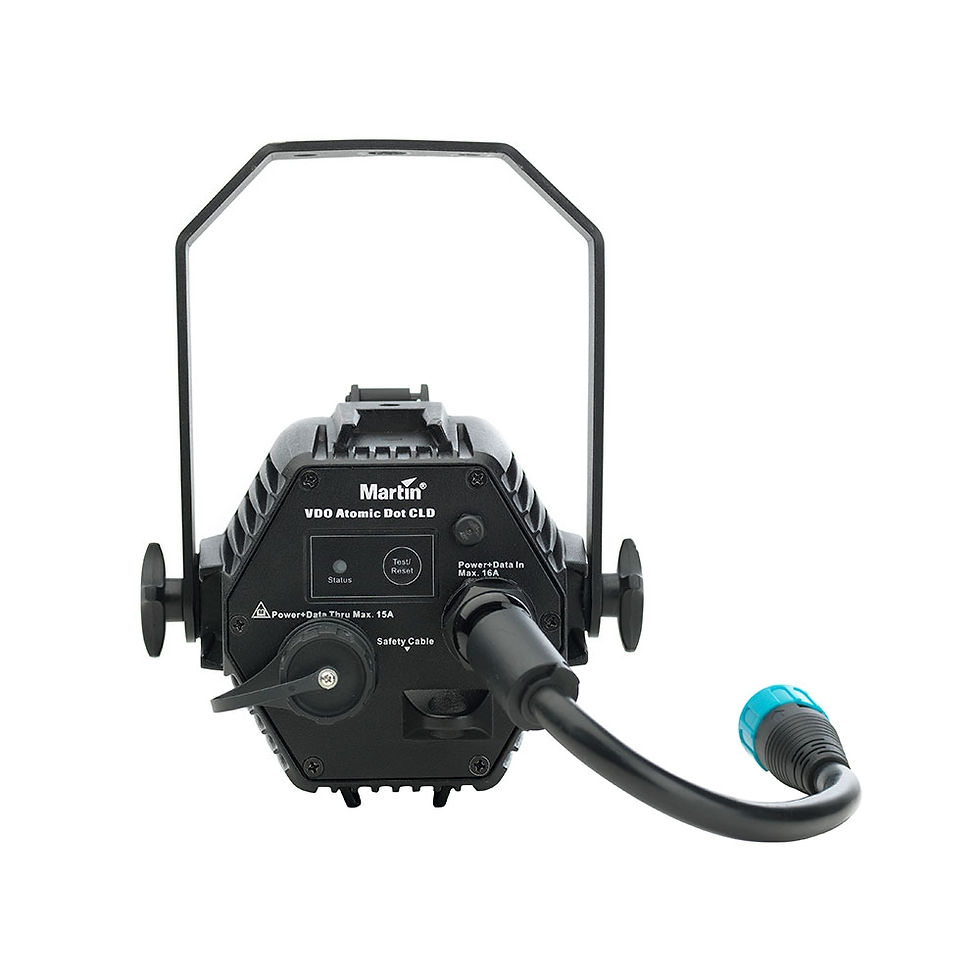

Martin VDO Atomic Dot WRM in cardboard

$740.86

Quantity

Physical

Fixture:
Width: 175 mm (incl. hanging bracket) (150mm fixture center-to-center using interlock couplers)
Height: 138 mm (150mm fixture center-to-center using interlock couplers)
Depth: 146 mm
Weight: 2.2 kg

PDE Junction Box:
Width: 94 mm
Height: 50 mm
Depth: 106 mm
Weight: 0.5 kg

Dynamic Effects

Strobe: 0.289 – 16.667Hz, variable flash rate, intensity and duration (incl. blinder mode)

Aura: RGB control per pixel, 16 pixels

Built-in FX: Various pre-programmed FX on Strobe, Aura and combination of both

Control and Programming

Control Protocols: DMX, RDM, Art-Net, sACN and P3

Protocol detection: Automatic

Setting and addressing: RDM or P3

DMX channels: 1, 3, 4, 19, 64

Firmware update: Via DMX using Martin Companion or via Ethernet using P3 System Controller

Fixture Identification: User-settable ID number

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net

sACN Compliance: ANSI E1.31

Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer

DMX/RDM Transceiver: RS-485

Ethernet Transceiver: 10/100Mbit

Control/User Interface

Device status: Multi-color status LED

Device test and reset: Pushbutton to call up local test patterns and reset device

Optics and Photometric Data

Beam/Strobe LED:
Max. total lumen output: 3350 lumens
CRI (Color Rendering Index): >80
Beam Angle: 11 Degrees (half peak)
Field Angle: 22 Degrees (one-tenth peak)
Color Temperature: 5700 K
Resolution: 16-bit
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Aura Backlight LEDs:
Color Temperature: Variable
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

P3 Video Processing

Color Resolution: 16 bit per color (48 bit per pixel)

Color Temperature Control: 2000-11000 K (Aura)

Color Gamut Control: Full spectrum control (Aura)

Synchronization: System-wide

Frame Rate: Up to 75 frames/sec

Brightness Control: 0-100% (maintaining full color depth)

Gamma Correction: Fully controllable

Gamma Control: Fully controllable

Construction

Housing: Aluminum

Color: Black

Protection rating: IP65

RoHS: Compliant

REACH: Compliant

Installation

Mounting options: Hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism

Location: Indoor or temporary outdoor use

Clamp attachment to hanging bracket: M12

Clamp attachment directly to fixture: M8

Maximum vertical column height: 16 fixtures

Orientation: Any

Minimum distance to combustible materials: 0.1 m

Minimum distance to illuminated surfaces: 0.2 m

Connections

VDO Atomic Dot Fixture:
AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible

PDE Junction Box :
AC Power input: Neutrik powerCON TRUE1 TOP (IP65 when mated with matching Neutrik cable connector)
DMX input: Neutrik XLR 5-pin Male TOP (IP65 when mated with matching Neutrik cable connector) (compatible with standard 5-pin XLR connectors)
Ethernet input: Neutrik etherCON TOP (IP65 when mated with matching Neutrik cable connector) (compatible with standard etherCON Cat 5E and Cat 6A) (NOT compatible with etherCON Cat 6 push-pull)
AC Power, DMX and Network thru: Chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible

Electrical

AC power: 100-240 V AC nominal, 50/60Hz

Power supply unit: Auto-ranging electronic switch mode

Typical half-cycle RMS inrush current: 1.12 A

Typical earth-leakage current: 0.25 mA

Maximum power consumption: 55 W

Typical Power and Current

100 V, 60 Hz: 49.0 W, 0.49 A, PF 0.99

120 V, 60 Hz: 48.9 W, 0.41 A, PF 0.98

208 V, 60 Hz: 48.6 W, 0.24 A, PF 0.95

230 V, 50 Hz: 50.2 W, 0.23 A, PF 0.96

240 V, 50 Hz: 49.6 W, 0.22 A, PF 0.94

Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.

Thermal

Cooling: Convection

Maximum ambient temperature (Ta max.): 40° C

Minimum ambient temperature (Ta min.): 0° C

Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr

Approvals

EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493

EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547

US safety: UL 1573

US EMC: 47 CRF §15 Class B

Canadian safety: CSA 22.2 No. 166

Canadian EMC: ICES-003 Class B, ICES-005 Class B

Australia/NZ: RCM (pending)

Accessories

Flightcase:
Flightcase for 15 x VDO Atomic Dot: P/N 91515053
Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054

Junction Box:
Junction Box Power-DMX-Ethernet to PDE: P/N 91610001

Optical Accessories:
VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005

Mechanical Accessories:
Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
G-clamp (vertical hanging installation only): P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp (vertical hanging installation only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Set of 10 VDO Atomic Dot Couplers: P/N 91610003
VDO Atomic Dot Half Coupler: P/N 91610004
VDO Atomic Dot Interlock Adapter: P/N 91610006
VDO Atomic Dot Pivot Coupler: P/N 91610007

Pre-Assembled Hybrid PDE Cables:
Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
Power+Data Cable Rental PDE-PDE 25m: P/N 91616005

Bulk Hybrid PDE Cable and Connectors:
Power+Data Connector PDE Male: P/N 91611701
Power+Data Connector PDE Female: P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006
