Overview
Pioneer DJ 6-channel Digital DJ Mixer with Analog and Digital I/O, Pro DJ Link, Dedicated Filter and Compressor Per Channel, Dual USB, Dual Headphone Outs, and Booth EQ-Long Fader
Building upon the success of the DJM-V10, the black Pioneer DJM-V10-LF removes the crossfader and extends the channel faders for more volume precision. Some DJs prefer to use the channel faders over the crossfader, as they offer more control to perform smooth blends with tiny adjustments to the volume of each track, or quickly drop sounds into the mix as if playing a musical instrument.

Removing the crossfader from the DJM-V10 affords the updated 60 mm shaft slide faders on the DJM-V10-LF to extend further down the top plate, offering a longer range of movement for better volume control of audio sources. What’s more, an updated fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.

The DJM-V10-LF is well suited for professional DJs, clubs, festivals, mobile DJs, nightclub installations, recording studios, and more. The mixer utilizes a 6-channel layout and an integrated USB soundcard with support for up to 6 stereo channels of 32-Bit / 96 kHz audio and 64-bit internal processing. Its digital throughput also delivers a wide variety of DSP effects.
Many enhancements have been made to the V10-LF including a complete redesign of the mixer's interface, which now includes a 4-band EQ, dedicated high-pass or low-pass filters with resonance, and send FX on each channel. Send FX offers four internal effects with dedicated parameter controls, plus two stereo sends with returns for interfacing with external FX processors such as guitar pedals, studio multi-FX, and more. Additionally, each Send FX (internal or external) can be assigned to one of the six channel strips for even more advanced routing and processing.
Each channel also features a compressor, which is designed for producer/DJs to play unmastered tracks seamlessly, help match older tracks to modern compression standards, or fatten up and tame dynamics. The updated Beat FX can now be accessed via a larger touchscreen for hands-on, real-time manipulation of effects, plus Hi/Mid/Low FX frequency cuts for further performance enhancements. Two independent headphone outputs add control for a dual cueing system, allowing DJs to play seamless back-to-back sets and smooth DJ transitions.

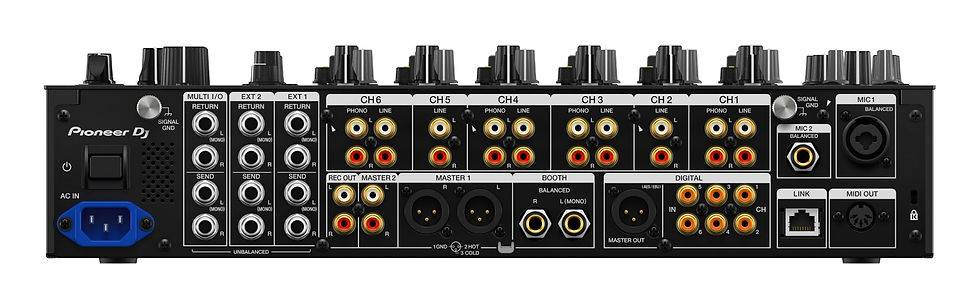

There are four inputs for turntables and six line-level inputs for digital decks. Additional features include Pro DJ Link, six S/PDIF digital input connections, one AES/EBU digital output connection, a DIN MIDI output for synchronizing external hardware effects and sequencers, two top-mounted USB connections, and an additional USB port that supports iOS devices for use with Pioneer's optional RMX-1000 for iPad. An independent send-and-return section allows for external effects to be used simultaneously with the internal effects. The DJM-V10-LF ships with a power cord.

6 Channels with Wide Range of Inputs
6 channels
Choose your ideal setup and plug in everything from CDJs and turntables to samplers, synths, and drum machines
Easy setup thanks to analog input terminals that line up with each channel on the top panel, so you’ll always know where to connect your cables when you’re in the booth
USB/MIDI terminal
With a 96 kHz / 24-bit sound card, you can input and output up to 6 stereo channels without any deterioration of sound quality when connected to a PC/Mac
Input and output of the send and master signals, as well as the input and output of individual channels, can be routed via USB to your computer
Smooth DJ handovers by simultaneously connecting 2 laptops (PC/Mac)
MULTI I/O terminal
USB Type-A terminal and 1/4" TS jacks are mounted on the top and the rear of the mixer
Arrange your sounds using the RMX-1000 app for iPad or another FX app, or record your mix directly to the DJM-REC app without any deterioration in sound quality
Route insert-type hardware effect units, such as the RMX-1000, through the 1/4" TS jacks
DIN MIDI Out
Sync external production gear using the BPM from rekordbox
Quantized BPM information is shared via Pro DJ Link when connected to a LAN hub
When not using PRO DJ Link, the DJM-V10’s BEAT FX suite will analyze and display a track’s BPM
4-Band EQ & Compressor
4-band EQ
Sculpt your sound just the way you like it
Frequencies, curves, boost, and cut amounts on each band have all been specially designed to give you total flexibility
Completely isolate the high and/or low and tweak the two mid ranges to fine tune your mix
Midrange EQs have their own custom curves
Compressor knob on each channel
Seamlessly play old or unreleased tracks alongside modern compressed productions
Compressor knob on the relevant channel will beef up the audio in real time
Quieter tracks will have added loudness, boosting the sound of weaker tracks
Mastered music will have a minimal effect
Channel Fader
Each channel is equipped with a newly developed, precise fader that enables fine adjustment
Highly stable and durable, faders will still feel smooth even after years of use
Creative FX
Send section
Send audio to one of four built-in FX
Short Delay
Long Delay
Dub Echo
Reverb
Send audio to up to two pieces of external equipment to create unique sounds and even live remixes
Connect guitar pedals, FX units, and more to the TS jack send/return terminals
Filter
Newly developed filter with resonance control
Drastically change the sound of a track or subtly tweak it
Switch on high- or low-pass filters by pressing either button
Turn the knob from all the way to the left (no filter applied) to the furthest position on the right (maximum filter applied)
High- and low-pass filters are separated, offering twice the resolution to play with compared to the filter on the DJM-900NXS2
Allows for more pronounced adjustments
Beat FX
Control the X-Pad via the touch display for more intuitive effects manipulation
Bring harmony to sound sources such as vocals and synthesizers to create unique sounds
Directly select the channel you want to add the effect to with the BEAT FX Assign button
Added Shimmer effect that adds brightness to the original audio
