Overview
A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use. The easiest wireless solution for moderators or reporters. The rugged e 835 microphone resists any bad weather or field condition, while the versatile receiver is easily mounted to any camera.
Features
- Rugged all-in-one wireless system with high flexibility for broadcast quality sound
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters / 330 feet
- Up to 8 hours of operation time
What's in the box?
- EK 100 G4 camera receiver
- SKM 100 G4 handheld transmitter
- MMD 835-1 microphone head
- MZQ 1 microphone clamp
- 4 AA batteries
- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 100 XLR to 3.5 mm jack adapter cable
- Quick guide
- Safety guide

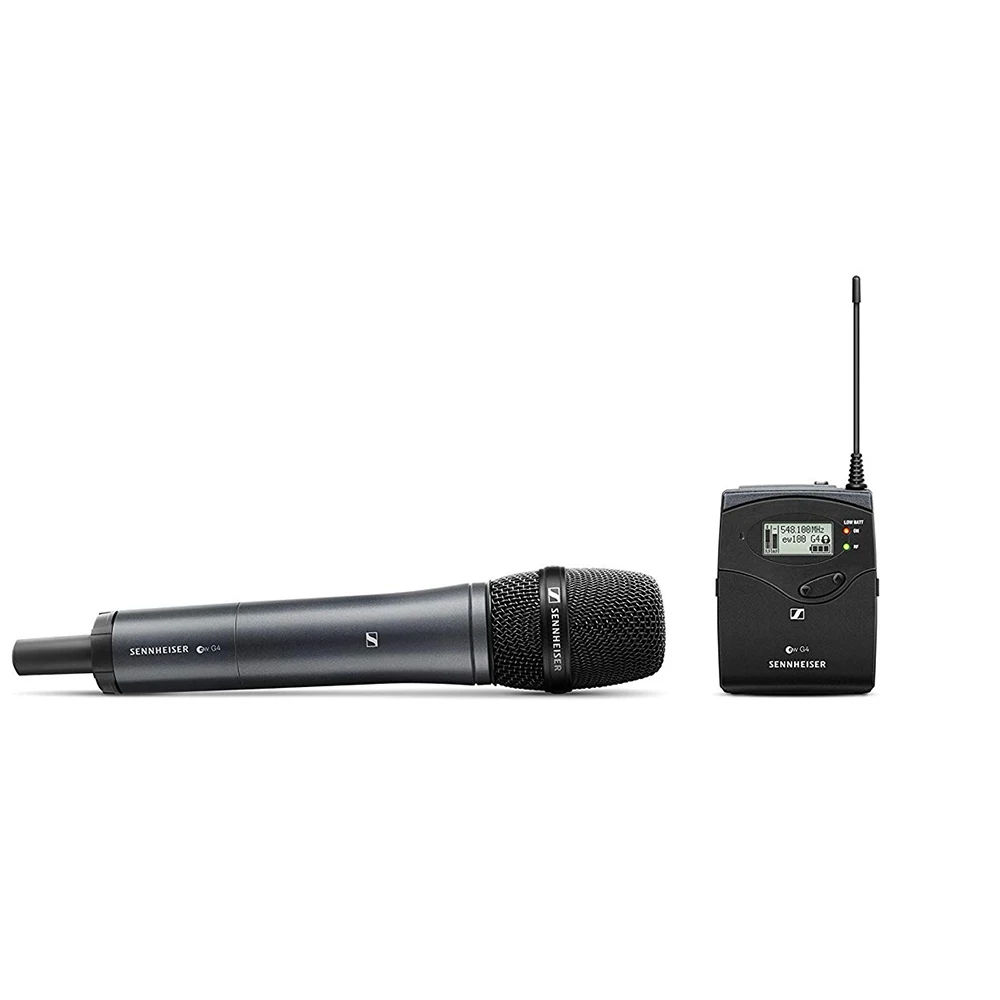

Sennheiser ew 135P G4-A1 Portable vocal set
$749.00 Regular Price
$599.00Sale Price
EK 100 G4
- Frequency range: A: 516 - 558 MHz
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
- Signal-to-noise ratio: ≥ 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 µA
- Adjacent channel rejection: ≥ 65 dB
- Intermodulation attenuation: ≥ 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity: < 1.6 μV for 52 dBA eff S/N
- Squelch: low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ≥ 70 dB
SKM 100 G4
- Dimensions: Approx. Ø 50 x 265 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: (incl. batteries) approx. 450 g
- Signal-to-noise ratio: ≥ 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: Up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: At nominal voltage: typ. 180 mA
- with transmitter switched off: ≤ 25 µA
- Input impedance: 40 kΩ
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ≤ ±15 ppm
